Ball Valves

Economy Ball Valves
Miniature Ball Valves
Premium Ball Valves



Premium Ball Valves by Apollo™

FEATURES:

  • Reinforced TFE Seats and Stuffing Box Ring
  • Chromium-plated Ball
  • Blow-out-proof Stem Design
  • Adjustable Packing Gland

MATERIAL LIST:

  • Lever and Grip Steel: Zinc-plated w/ Vinyl
  • Stem Packing: Reinforced TFE
  • Stem Bearing: Reinforced TFE
  • Ball: Chromium-plated Brass
  • Seat (2): Reinforced TFE
  • Retainer: Brass
  • Gland Nut: Brass
  • Stem: Brass
  • Lever Nut: Steel, Zinc-plated
  • Seal (1" only): Reinforced TFE
  • Body: Bronze Cast
  • Threaded, 600 PSIG WOG
  • Cold Non-shock
  • 150 PSIG Saturated Steam
  • Vacuum service to 29" Hg

FEDERAL SPECIFICATIONS:

  • WW-V35C
  • Type:  II
  • Style:  3
  • Composition:  BZ

ISO-9001 RATED

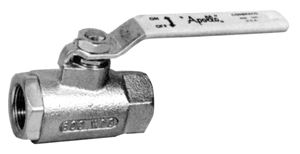

The Original Bronze APOLLO™
Female x Female
Series 70-100

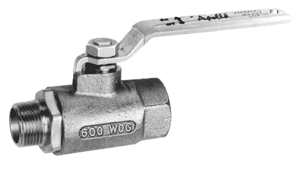

Bronze APOLLO™
Male x Female
Series 70-800



Replacement Handles for Apollo™ Ball Valves

  • Available Sizes:  1/4" to 2"




Miniature Ball Valves

Ideal for Limited Space
Large Port
Forged Brass

MATERIAL LIST:

  • Handle Nut: Coated Steel
  • Handle: Coated Steel
  • Packing Nut: Brass
  • Stem Packing: Teflon™
  • Thrust Washer: Teflon™
  • Stem: Brass
  • Ball: Chrome-plated Brass
  • Seats: Teflon™
  • Body: Forged Brass
  • End Adapter: Forged Brass
  • Teflon is a registered TM of Dupont, Inc.

ISO-9002 RATED



Model BVT-900
Male x Female

Model BVT-900T
Male x Female




Economy Ball Valves

Female x Female: Full Port



Male x Female: Full Port

FEATURES:

  • Available Sizes:  1/4" to 2"
  • Threaded Ends to ANSI B1.20.1
  • Each Valve Individually Tested
  • Hard Chromium Plated Solid Ball
  • 600 psi Non-Shock Cold Water/Oil/Gas (WOG)
  • 150 psi Saturated Steam
  • Forged Construction - Greater Strength
  • Bottom Entry, Blow-out Proof Stem
  • Double Stem Packing, Teflon Seats
  • Operating Temperature: Min. -20F (-40C); Max. 248F (120C)



FEATURES:

  • Available Sizes:  1/4" to 2"
  • Threaded Ends to ANSI B1.20.1
  • Each Valve Individually Tested
  • Hard Chromium Plated Solid Ball
  • 600 psi Non-Shock Cold Water/Oil/Gas (WOG)
  • 150 psi Saturated Steam
  • Forged Construction - Greater Strength
  • Bottom Entry, Blow-out Proof Stem
  • Double Stem Packing, Teflon Seats
  • Operating Temperature: Min. -20F (-40C); Max. 248F (120C)




All SFP ball valves are comparable with most major brands including:

A-T Controls
American Valve
Anderson Brass
Automated Valve
Bee Valve
Dahl-Vaughn
DynaQuip
Fasani
Flodyne
Gemini
Ham-Let

Kantleak
KBI/King Brothers
Kelly Pipe
KTM
M&M
Marwin
MCF
Metso
Mogas
Neotecha
PBM

Simtech
Specialty Mfg.
Stainless Valve
Sureflow
Trans-Valve
Triad
Tyco
Valterra
Velan
Warren Alloy
Webstone
