Extended Brass Plugs



Designed to eliminate the installation problems of soldering, welding, etc. of connector plugs to steel pipe nipples. Once installed, the advantages of flush mounted mold connector plugs are many. Sealing surfaces of plugs are protected, while handling and storage of the mold is made easier.

  • Length adjustments are easy with a pre-cut thread system

  • 1-piece construction for fast assembly, positive removal

  • Available in brass, stainless steel or plated steel

  • Compatible with all major mold connection systems

  • End threads tapered for standard NPT pipe assembly

  • Available Styles:  200, 300 or 500 Series

  • Available Hole Sizes:  1/4", 3/8", 1/2"

  • Available Pipe Sizes:  1/16", 1/8", 1/4", 3/8", 1/2"

  • Available Lengths:  From 2-1/2" to 13"

  • Available Hex Sizes:  From 3/8" to 1-1/2"



Length Adjustments and Installation

1.  When special length adjustments are required, simply cut piece to length and chamfer end.
2.  Turn into standard pipe threading die to re-taper threads.
3.  At assembly, the tapered brass threads provide a dependable leak-proof seal. With one-piece construction, removability is always guaranteed.

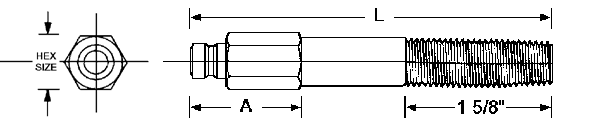

EXTENSION
SERIES
"A" "B"
250 3/4" 1"
251 7/8" 1-1/4"
252 1" 1-1/2"
253 1-1/8" 1-1/2"
350 1" 1-1/4"
351 1" 1-1/4"
352 1" 1-1/2"
353 1-1/8" 1-1/2"
354 1-1/2" 1-3/4"
553 1-3/8" 1-5/8"
554 1-1/2" 1-3/4"
