Air and Water Manifolds

Rugged, Quick Connect External Manifolds
Offer You Exceptional Convenience,
Cost and Production Advantages

FEATURES:

  • Color Coded - Hoses and Manifolds are Color Coded (Red for Hot and Blue for Cold) for Easy Identification (And To Help Eliminate Hookup Errors)
  • Fewer Connections - Reduces Chances of Hookup Errors
  • Variety of Models - Standard or Custom — Virtually Unlimited Combinations Available — We Can Accommodate Almost Any Cooling Pattern
  • Full Flow - For Optimum Efficiency
  • External Mounting - Provides Thermal Barrier Between Mold and Manifold
  • Port Size Selection - May Be Sized for Foolproof Connections (No Accidental Hookup of Cold to Hot or
    Hot to Cold)
  • Pre-Plumbing - Permits Bench Testing of Flow Rates and Checks for Mold Leaks

GENERAL SPECIFICATIONS:

  • Manifolds are in stock or custom drilled to your specifications.
  • Either separate single manifolds may be used for the supply and return flow (see drawing A); or a divided manifold with a divider plate may be used for both the supply and return flow (see drawing B).
  • Manifolds have pre-drilled mounting holes and are furnished with stainless steel mounting screws.
  • Ports can be drilled in from 1 to 5 surfaces - A, B, C, D, and/or E (see drawing C). Custom spacing is available.
  • Manifolds are made from 356 aircraft aluminum.
  • Single manifolds are available in red, blue or black. Divided manifolds are half blue and half red.

Pressure Rating: 3000 psi

Temperature Rating: 300F



INLINE







SIDELINE
(Divided)



DRAWING A


Two separate manifolds: one for supply lines and one for return lines
DRAWING B




One (1) divided manifold with both supply and return valves
DRAWING C


M3 Manifold

SPECIFICATIONS:

  • Available in lengths from 2".
  • Made from 1" x 1" stock.
  • Inlet ports are NPT, and are furnished with flush end plugs of the same size (1 plug for inline manifolds; 2 plugs for sideline manifolds).
  • Outlet ports can be 1/8 or 1/4 NPT.
  • Ports are spaced 1" apart. Custom spacing is also available.
  • Supplied with 10-32 x 1" mounting bolt.
  • -123 O-rings fit End Cap.

More Info on M3 Manifolds



M4 Manifold

SPECIFICATIONS:

  • Available in lengths from 3".
  • Made from 2" x 2" stock.
  • Inlet ports are 1 NPT, and are furnished with flush end plugs of the same size (1 plug for inline manifolds; 2 plugs for sideline manifolds).
  • Outlet ports can be 1/4 or 3/8 NPT.
  • Ports are spaced 1" apart. Custom spacing is also available.
  • Supplied with -20 x 2" mounting bolt.
  • -220 O-rings fit End Cap.

More Info on M4 Manifolds

M6 Manifold

SPECIFICATIONS:

  • Available in lengths from 6".
  • Made from 3" x 3" stock.
  • Inlet ports are 1 NPT, and are furnished with flush end plugs of the same size (1 plug for inline manifolds; 2 plugs for sideline manifolds).
  • Outlet ports can be 1/4, 3/8, 1/2, or 3/4 NPT.
  • Ports are spaced 2" apart. Custom spacing is also available.
  • Supplied with -20 x 2" mounting bolt.
  • -226 O-rings fit End Cap.

More Info on M6 Manifolds



M8 Manifold

SPECIFICATIONS:

  • Available in lengths from 8".
  • Made from 3" x 3" stock.
  • Inlet ports are 2 NPT, and are furnished with flush end plugs of the same size (1 plug for inline manifolds; 2 plugs for sideline manifolds).
  • Outlet ports can be 1/2, 3/4, or 1 NPT.
  • Ports are spaced 2" apart. Custom spacing is also available.
  • Supplied with -20 x 3" mounting bolt.
  • -230 O-rings fit End Cap.

More Info on M8 Manifolds

quickQUOTE

Manifolds with Special Spacing:

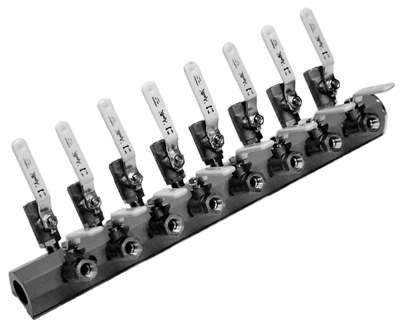

Manifolds can be ordered with special 2" port spacing to mount ball valves for positive shut-off.

FEATURES:

  • Use to mount pressure and temperature gauges for peak performance
  • Top quality - low cost
  • Reduce hose lengths and setup time
  • Will not rust

GENERAL SPECIFICATIONS:

  • Manifolds are in stock or custom drilled to your specifications.

  • Either separate single manifolds may be used for the supply and return flow (see drawing A); or a divided manifold with a divider plate may be used for both the supply and return flow (see drawing B).

  • Manifolds have pre-drilled mounting holes and are furnished with stainless steel mounting screws.

  • Ports can be drilled in from 1 to 5 surfaces - A, B, C, D, and/or E (see drawing C). Custom spacing is available.

  • Manifolds are made from 356 aircraft aluminum.

  • Single manifolds are available in red, blue or black. Divided manifolds are half blue and half red.

Pressure Rating: 3000 psi

Temperature Rating: 300F







Our manifolds are comparable with the following brands: A1, Airtx International, Alco, Alkon, Amity Machine, Alumni-Tec, ASCO, Atlas, Ausco, B&R, Bandotherm, Banjo, Bauer, Beco, Birmingham, Bosch, Burger & Brown, CITO Products, Cross Fluid, Daman, DK-Lok, DME, EHA, EMI, Enerpac, Fairchild, Forward Industries, Gar-Kenyon, Harris, Heitec, Hydac, Hydo-Fitting, INCOE, IPT, JP Solutions, Kedron, Kor-Lok, Linfor, Lynch, Magnaloy, Mastip, Mead, Med-Kas, Parker, Parker-Hannifin, PGI, Pisco, Pneumadyne, Pneudraulics, PPE, REO, Ross Controls, Saicad, Selling Precision, Stover, Techno-Jet, Tri Flo, Valve Check, Vektek, Vonberg.
