Pipe Fittings

Hex Nipple
Hex Nipple - Adjustable
Hex Nipple - Male Reducing

Brass Adjustable Hex Nipples

  • Adjustable threads for perfect positioning
  • Standard NPT tapered pipe threads both ends

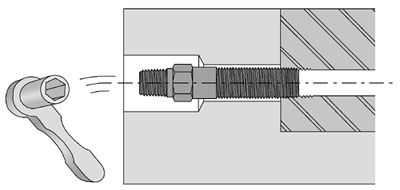

  • Especially useful when installing cascade heads hex elbows inside molds and slides
  • Longer and special exact lengths available
  • Available with special thread combinations
  • Pipe Sizes (NPT):  From 1/16" to 1/2"

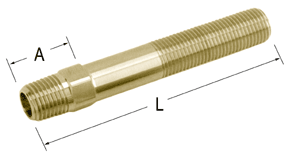

  • "A" Sizes:  From 11/16" to 1-3/8"
  • Hex Sizes:  From 3/8" to 7/8"
  • Overall Lengths:  2-1/2", 4", 5-1/2", 7", 8-1/2", 10", 11-1/2" and 13"
PART
NO.
PIPE
SIZE
(NPT)
"A" HEX
SIZE
APN16-__* 1/16 11/16" 3/8
APN18-__* 1/8 3/4" 7/16
APN14-__* 1/4 7/8" 9/16
APN38-__* 3/8 1" 11/16
APN12-__* 1/2 1-3/8" 7/8
*Insert desired overall length
(Example:  APN14-212 for 2-1/2")

Hex Nipple

  • NPT Thread Sizes:  From 1/8" to 1"
PART NO. NPT
THREAD
SIZE
HN18B 1/8
HN14B 1/4
HN38B 3/8
HN12B 1/2
HN34B 3/4
HN1B^ 1

^Bronze


Male Reducing Hex Nipple

  • NPT Thread Sizes:  From 1/8" Male x 1/16" Female to 3/4" Male x 1/2" Female
PART NO. NPT
THREAD
SIZE
MR18116B 1/8 X 1/16
MR1418B 1/4 X 1/8
MR3818B 3/8 X 1/8
MR3814B 3/8 X 1/4
MR1214B 1/2 X 1/4
MR1238B 1/2 X 3/8
MR3412B 3/4 X 1/2
