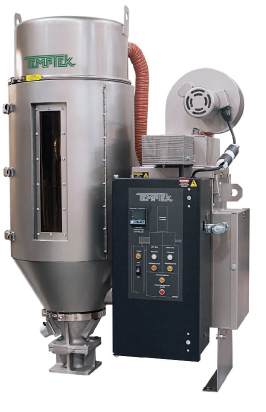

NDB Series

Desiccant Dryers









NDB Series Desiccant Dryers use the industry standard dual-bed drying concept in a compact single blower configuration.One blower and multi-function valve control both the process and regeneration flow. The heaters are contained within the desiccant beds to minimize space.

  Features:
  • Guaranteed -40°F dewpoint process air.
  • Dual bed, stainless steel construction.
  •  Integrated stainless steel insulated drying hoppers with large access door and sight glass (200 lb. hopper is carbon steel).
  •  Compact design with single blower and a multifunction valve to control both the process and regeneration heaters contained within the desiccant beds to save space.
  •  Standard voltage : 115/1/60 for NDB-15-T, 460/1/60 for NDB-25-T and 460/3/60 for NDB-50-T.
  •  Cyclonic 2 stage process filter.
  •  High heat up to 350°F (cooling coil required over 225°F.
  •  Tubular Incoloy® sheath heaters. • Nema 1 enclosure.
  •  Main line contactor.
  •  High efficiency 13x molecular sieve desiccant.
  •  Slide gate shut off.
  •  Analog thermometer at hopper inlet.
    MICRO PLC BASED CONTROL
  •  Over-temperature alarm and shutdown with indication.
  •  Auto-tune PID temperature control with dual LED display.
  •  Full function graphic display.
  • Throughput of 10 to 100 Pounds Per Hour
