Cooling Towers

TP Series (Fiberglass)




TP Series Cooling Towers are ready to meet the demands of today's
industry. The tower cell is made of all non-ferrous constructed materials, including
a fiberglass shell, TEFC motor, ABS fan blades, PVC wet deck, and distribution
header.  The fiberglass shell is 1/2" thick and even thicker in priority support areas.




Features:

  • All Non-Ferrous Construction
  • 45 to 540 Tons Capacity
  • TEFC Fan Motor and ABS Fan Blades
  • Induction Draft Air Movement
  • Large Orifice Spray Heads
  • PVC Constructed Wet Deck
  • Easily removed Inspection Covers

Available in either single or multi-cell designs, TP Series Cooling Towers are constructed of high-strength molded fiberglass with a a UV stabilized coating.  The fan blades are made of a glass fiber reinforced polymer and designed in a air foil manner to increase air flow.

PVC constructed inlet louvers direct air flow at a proper angle for even distribution into the wet desk and are easily removed for cleaning.  Their vertical orientation eliminates splash out and helps to prevent air-born debris from entering the cell.

The large orifice PVC spray heads are set in a computer designed spray pattern and a drift eliminator prevents over spray and water loss. The stacked honeycomb pattern of the wet deck maximizes water and air flow for greater cooling efficiency.

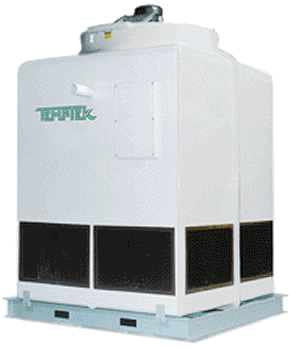

TP Series Cooling Tower (Fiberglass)



TP SERIES SPECIFICATIONS

  T45P T85P T05P T135P T170P T210P T270P T405P T540P
CAPACITY 1 45 85 105 135 170 210 270 405 540
FLOW
RATE (GPM)
135 255 315 405 510 630 810 1215 1620
FAN QUANTITY 1 1 1 1 2 2 2 3 4
RPM 1170 1170 1170 870 1170 1170 870 870 870
NO. of
BLADES/FAN
9 9 9 6 9 9 6 6 6
DIAMETER of
FAN
36" 42" 42" 60" 42" 42" 60" 60" 60"
TOTAL CFM 12040 21700 25000 30500 43400 50000 61000 91500 122000
MOTOR QUANTITY 1 1 1 1 2 2 2 3 4
TOTAL HP 3.0 5.0 10.0 7.5 10.0 20.0 15.0 22.5 30.0
AMPERAGE 2 230/3/60 9.6 15.2 28.0 22.0 28.0 56.0 44.0 66.0 88.0
460/3/60 4.8 7.6 14.0 11.0 14.0 28.0 22.0 33.0 44.0
575/3/60 3.9 6.1 11.0 9.0 11.0 12.0 18.0 27.0 36.0
PIPE
SIZES
TO PROCESS 3" 4" 4" 4" 6" 6" 6" 2 @ 6" 2 @ 6"
FROM PROCESS 4" 6" 6" 6" 10" 10" 10" 2 @ 10" 2 @ 10"
DIMENSIONS HEIGHT 138" 138" 138" 140" 138" 138" 140" 140" 140"
LENGHT 60" 84" 84" 96" 145" 145" 169" 254" 338"
DEPTH 49" 73" 73" 85" 84" 84" 96" 96" 96"
WEIGHT DRY 725 lbs 1290 lbs 1390 lbs 1612 lbs 2310 lbs 2210 lbs 3125 lbs 4350 lbs 5800 lbs
WET 1470 lbs 3100 lbs 3200 lbs 4200 lbs 5700 lbs 5600 lbs 7800 lbs 11000 lbs 15000 lbs
SHIPPING 1100 lbs 1580 lbs 1680 lbs 1950 lbs 2310 lbs 2710 lbs 3125 lbs 4350 lbs 5800 lbs
1 Ton Capacity at 1500BTU/hr
2 Full Load Amps shown. No allowance for in-rush. Full Load Amps are higher than Run Load Amps and must be used for sizing disconnects and supply wiring


Available Options

Fan Motor Starter Kit
  • Motor starter contactor
  • Motor overload relay
  • Nema 1 enclosure
  • Fan thermostat
Side Outlet
  • PVC flange
  • Factory installation



Basin Float Valve
  • Mechanical float and valve
  • 1/2" supply connection
  • Factory or field installation
Tower Stand
  • 10' corner post design with cross bracing
  • Ladder and railing attachments
