Gate Cutters

Crescent® Plastic Cutting Tools:
These plastic cutters are designed and manufactured to the highest quality standards. They provide high reliability and efficiency in a wide range of plastic cutting and trimming applications. They are ideal for repetitive cutting while removing gates and spurs from molded parts.

All Models Feature:

Sharp, flush ground cutting edges, flush ground cutter backs, and a selection of head designs permit close trimming and accurate cutting in confined areas.
Blue "puffy" handle grips and handle springs provide user comfort.
Choice of models with right- or left-hand ergonomic handle designs to reduce fatigue from repetitive cutting while increasing productivity.

PART NO.	OVERALL LENGTH	HEAD DIMENSIONS			BLADE AT TIP	OPENING AT BASE	BLADE LENGTH
PART NO.	OVERALL LENGTH	A	B	C	BLADE AT TIP	OPENING AT BASE	BLADE LENGTH
FLUSH CUT DIAGONAL CUTTER

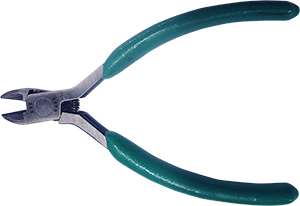

MS-549J	4"	33/64"	27/67"	1/4"	7/16"	1/8"	3/8"
DIAGONAL CUTTER - FLUSH GROUND

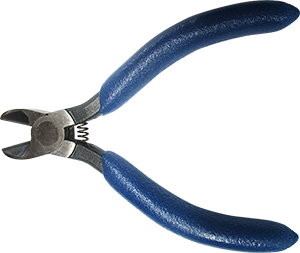

P55	5"	49/64"	5/8"	11/32"	9/16"	5/32"	3/4"
P56	6"	53/64"	23/32"	13/32"	7/8"	1/4"	13/16"
P57	7"	1-1/16"	55/64"	15/32"	1-1/16"	5/16"	1"
HEAVY-DUTY CUTTER
P56RP	6"	27/32"	23/32"	13/32"	7/8"	1/4"	13/16"
M57RP	7"	1-3/32"	29/32"	31/64"	1-1/18"	5/16"	1"
ERGONOMIC HEAVY-DUTY CUTTER
M57ER	7"	1-1/16"	59/64"	1/2"	1-1/8"	5/16"	1"
THIN DIAGONAL CUTTER
P4-3	4"	41/64"	37/64"	11/32"	17/32"	3/16"	5/8"

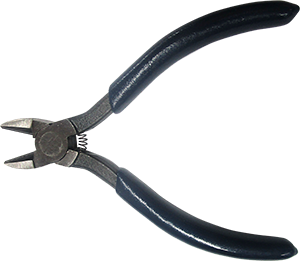

P5-3	5"	25/32"	5/8"	23/64"	9/16"	5/32"	3/4"
P6-3	6"	27/32"	47/64"	13/32"	7/8"	1/4"	13/16"
P7-3	7"	1-1/16"	29/32"	29/64"	1-1/16"	5/16"	1"
STARTER KIT
GCKIT-1	Starter Kit Includes MS-549J, P4-3, P57, M56RP, and M57ER

Crescent® Gate Cutters - 5-Piece Starter Kit Starter kit contains five different models of cutters ideal for close trimming and accurate cutting in confined areas. Each cutter is uniquely designed to efficiently remove gates and spurs from molded parts. Flush Cut Diagonal Cutter (4" O.A.L.) Thin Diagonal Cutter (4" O.A.L.) Diagonal Cutter - Flush Ground (7" O.A.L.) Heavy Duty Diagonal Cutter (7" O.A.L.) Heavy Duty Ergonomic Cutter (7" O.A.L.) Packaging: Five cutters per kit.

Flush Cut Diagonal Cutter Oval jaws with narrow tips permit flush cutting in confined areas Blue vinyl cushion grips Handle coil springs reduce user fatigue Available overall length: 4" Packaging: Sold individually.

Heavy-Duty Diagonal Cutter Heavy-duty diagonal cutter Flush ground back for close cutting Adjustable stops prolong cutting edge life Available overall lengths: 6", 7" Packaging: Sold individually.

Heavy-Duty Ergonomic Cutter Heavy-duty cutter Ergonomically designed handles increase productivity by reducing user fatigue and allowing easier gripping and control Adjustable stops prolong cutting edge life Available overall lengths: 6", 7" Packaging: Sold individually.

Flush Ground Diagonal Cutter Ideal for close trimming of gates and spurs on injection molded plastic parts Flush ground, oval shaped jaws with fine point permit use in confined areas Polished head Blue vinyl cushion grips Handle coil springs reduce user fatigue Available overall lengths: 4", 5", 6", 7" Packaging: Sold individually.

Thin Diagonal Cutter Extra slim design Ground flat on back side Flush ground edges Oval shaped jaws with fine point are throat relief ground for clearance Blue vinyl cushion grips Handle coil springs reduce user fatigue Available overall lengths: 4", 5", 6", 7" Packaging: Sold individually.

Manufacturers of High-Quality
Products for the Plastics Molding Industry

SERVICES FOR PLASTICS, INC.
800-627-1033

7925 N. Clinton St., Fort Wayne, IN 46825-3113, USA
Fax: 800-482-4059 | E-mail: sales@servicesforplastics.com
Contact Webmaster regarding content or link problems
Copyright 2012. Services for Plastics, Inc. All Rights Reserved

Our gate cutters are comparable to most major brands including:
ACY Budget Molders Cryoplus Diamond DME EMI Hakko		Hozan IMS JDV PPE Rothenberg Simonds Swanstrom
