EZ Loaders




Complete Material Loading Systems for Molding Machines


Single and Double Inlet Loader

  • Full-Grip Knob with Brass Insert

  • 1-1/4" Inlet

  • Polished 16 gauge Stainless Steel Hopper

  • Stainless Steel Lid

  • High Efficiency Air Filter

  • Impact Resistant Sight Glass Assembly

  • Stainless Steel Mounting Plate

    • 10-149 ton machine 4x4 plate

    • 150+ ton machine 6x6 plate

  • Anodized Aluminum Outlet Tube

  • Material Level Sensor w/ Stainless Steel Bracket

  • 1 wand for Single Inlet, 2 wands for Dual Inlet Loader



Part
Number

Description

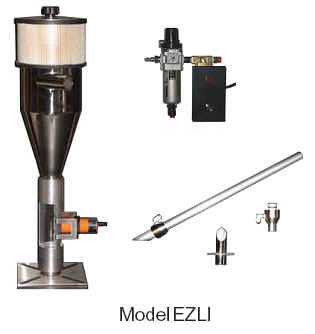

EZLI Single-Inlet Loader

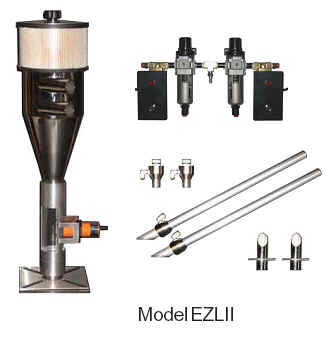

EZLII Dual-Inlet Loader
EZ Loader Specifications
Hopper Inlet 1-1/4" Inlet
Sight Glass Assembly with sensor 2" OD
Hopper Diameter 5-1/2"
Max Thruput 1000 pph
Height 24"
Weight 10 lbs
Hose 1-1/4" ID  x 10 ft long
Max Conveying Distance 60 ft
Standard Operating Pressure 80 psi
Wand/Venturi Standard with 3/8" air fitting
Control Unit with solenoid valve and sensor input 110 VAC
Filter Type Cartridge style with screen
Mounting Plate 4"x4" or 6"x 6" square flange with mounting slots
