Granulators






The EM Series is designed for maximum versatility. This press side
granulator is operator friendly, easy to service and easy to maintain.
Precision scissor cutting action provides maximum through-put efficiency.




Features:
  • Four Models Available -88EM, 1010EM, 1216EM, 1420EM
  • Combination Hopper for Manual or Robotic Feed.
  • Hinged Hopper for Easy Cleaning and Servicing.
  • Special Steel Plate/Steel Laminate Construction to Reduce Resonate Noise.
  • Interlock Time Delay Safety.

Oversized, outboard mounted bearings are self-aligning.  The bearings are separate from the cutting chamber to eliminate heat build-up and grease contamination.

Three rotor knives and two bed knives are constructed of D2 High Carbon Steel.  The rotor knives are mounted at a steep angle and counter angled for a precision cut.

The granulator screen is reversible and provides easy handling of material, as well as vacuum unloading with wand.  The screen cradle is hinged and drops open for easy servicing and cleaning.

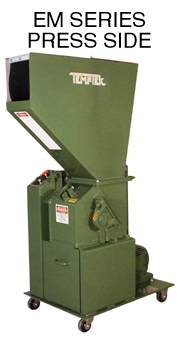

EM Series Temptek Granulator



EM SERIES SPECIFICATIONS

  88EM 1010EM 1216EM 1420EM
HOPPER/CUTTING
CHAMBER OPENING
8" x 8 " 10" x 10" 12" x 16" 14" x 20"
MOTOR HP 3.0 7.5 15.0 25.0
RPM 437 437 409 400
FULL LOAD
AMPERAGE 1
230/3/60 8.3 20.4 38.6 68
460/3/60 4.1 10.2 19.3 34
THROUGH PUT (lb/hr) 200 300 400 600
DIMENSIONS DEPTH (base) 30" 31" 44" 55"
HEIGHT (to infeed tray) 48" 53" 58" 59"
HEIGHT (to robotic feed) 58" 65" 72" 75"
WIDTH 20-1/2" 23" 32" 36"
OVERALL
DEPTH
39" 40" 52" 75"
WEIGHT (Shipping) 550 lbs 1000 lbs 1600 lbs 2200 lbs

1 Full Load Amps are higher than run load amps and must be used for sizing disconnects and supply wiring.
