Machined
Mold Clamps

Click here for Tech Tip!
Click here for technical information about Mold Clamps



Open Toe Swivel Base Mold Clamp

Open Toe Mold Clamp

Closed Toe T-bolt Mold Clamp

Features:

Our complete line of mold clamps are available in an extensive range of sizes. Clamps are available in open-toe and closed-toe styles, as well as heavy duty and extra heavy duty versions.

  • Quick and Easy Adjustment Reduces Setup Time
  • Clamps Made from Premium Quality Steel, Hardened for Extended Life, and Coated with Black Penetrate Finish to Prevent Rust
  • Unique Swivel-based Adjusting Screw
  • Provides Maximum Flexibility and Accuracy
  • Available as individual components or complete clamp assemblies.







Buy a Complete Mold Clamp Assembly
or Individual Parts

 Closed Toe Swivel Base Mold Clamp

Open Toe Style
Heavy Duty (w/Swivel-Base Adjusting Screw)





Also available with
Non-Swivel Base

For Clamping Screw Diameter

Clamping Screw Size Supplied with Assembly (Thread x Length)

Mold Clamp Body Specifications

Complete Assembly Part Number

Individual Clamp Bodies Part Number

Thickness

Width

Slot Length

Overall Length

5/8" 5/8"-11 x 3-1/2" 1" 1-3/4" 2-3/4" 4" TAC-584-A HD-584
3-1/4" 5" TAC-585-A HD-585
3-3/4" 6" TAC-586-A HD-586
4-1/4" 7" TAC-587-A HD-587
3/4" 3/4"-10 x 4" 1-1/8" 2" 3-3/8" 5" TAC-755-A HD-755
3-7/8" 6" TAC-756-A HD-756
4-3/8" 7" TAC-757-A HD-757
5-3/8 8" TAC-758-A HD-758
1" 1"-8 x 5" 1-1/2" 2-1/2" 6" 10" TAC-110-A HD-110

Open Toe Style
Extra Heavy Duty
(w/Swivel-Base Adjusting Screw)




Also available with
Non-Swivel Base

For Clamping Screw Diameter

Clamping Screw Size Supplied with Assembly (Thread x Length)

Mold Clamp Body Specifications

Complete Assembly  Part Number

Individual Clamp Bodies Part Number

Thickness

Width

Slot Length

Overall Length

5/8" 5/8"-11 x 3-3/4" 1-1/4" 1-3/4" 3-5/8" 6" TAC-5860-A XHD-5860
4-5/8" 5" TAC-5875-A XHD-5875
3/4" 3/4"-10 x 4" 1-1/2" 2" 4" 6-1/2" TAC-7565-A XHD-7565
5" 8" TAC-7580-A XHD-7580
6" 9-1/2" TAC-7595-A XHD-7595
1" 1"-8 X 5-1/2" 1-3/4" 2-1/2" 4-3/8" 8" TAC-1008-A XHD-1008
6-3/8" 11" TAC-1011-A XHD-1011

Closed Toe Style
Extra Heavy Duty
(w/Swivel-Base Adjusting Screw




Also available with
Non-Swivel Base

For Clamping Screw Diameter

Clamping Screw Size Supplied with Assembly (Thread x Length)

Mold Clamp Body Specifications

Complete Assembly  Part Number

Individual Clamp Bodies Part Number

Thickness

Width

Slot Length

Overall Length

5/8" 5/8"-11 x 3-3/4" 1-1/4" 1-3/4" 2-5/8" 6" TAC-5861-A XHD-5861
3-5/8" 7-1/2" TAC-5876-A XHD-5876
3/4" 3/4"-10 x 4-1/2" 1-1/2" 2" 2-3/4" 6-1/2" TAC-7566-A XHD-7566
3-3/4" 8" TAC-7581-A XHD-7581
4-3/4" 9-1/2" TAC-7596-A XHD-7596
1" 1"-8 x 5-1/2" 1-3/4" 2-1/2" 3 " 8" TAC-1009-A XHD-1009
5 " 11" TAC-1012-A XHD-1012
1-1/4" 1-1/4"-7 x 6" 1-3/4" 3" 5-1/2" 13" TAC-1250-A XHD1250
1-1/2" 1-1/2"-6 x 6" 1-3/4" 3-1/2" 5-3/4" 13-1/2" TAC-1500-A XHD1500

Open Toe Style
 Heavy Duty
(w/Non-Swivel Base)






For Clamping Screw Diameter

Clamping Screw Size Supplied with Assembly (Thread x Length)

Mold Clamp Body Specifications

Complete Assembly Part Number

Individual Clamp Bodies Part Number

Thickness

Width

Slot Length

Overall Length

5/8" 5/8"-11 x 3-3/4" 1" 1-3/4" 2-3/4" 4" CFC-584-A HD-584
3-1/4" 5" CFC-585-A HD-585
3-3/4" 6" CFC-586-A HD-586
4-1/4" 7" CFC-587-A HD-587
3/4" 3/4"-10 x 4" 1-1/8" 2" 3-3/8" 5" CFC-755-A HD-755
3-7/8" 6" CFC-756-A HD-756
4-3/8" 7" CFC-757-A HD-757
5-3/8" 8" CFC-758-A HD758
1" 1"-8 X 4 1/2" 1-1/2" 2-1/2" 6" 10" CFC-110-A HD-110

Closed Toe Style
Extra Heavy Duty
For T-Slotted Machines
(w/Swivel Adjusting Screw)

Also available with
Non-Swivel Base

T-Slot Bolt Supplied With Assembly
(Diameter x Length)

Mold Body
Specifications

Complete Assembly Part Number

Individual Clamp Bodies Part Number

Thickness

Width

Slot Length

Overall Length

5/8" x 4-1/2" 1-1/4" 1-3/4" 2-5/8" 6" TBA-5861-A XHD-5861
3/4" x 5" 1-1/2" 2" 2-3/4" 6-1/2" TBA-7566-A XHD-7566
1" x 6" 1-3/4" 2-1/2" 4-3/8" 8" TBA-1009-A XHD-1009



We Offer Replacement Parts

  • Extra large adjusting screw assemblies
  • Hex head adjusting screws
  • High strength, Grade 5, Hex head clamping screws
  • High strength, T-slot bolts
  • Heavy duty hex nuts for T-slot bolts
  • Round mold washers
  • Extra large rounds mold washers
  • Extra large no-twist rectangular washers

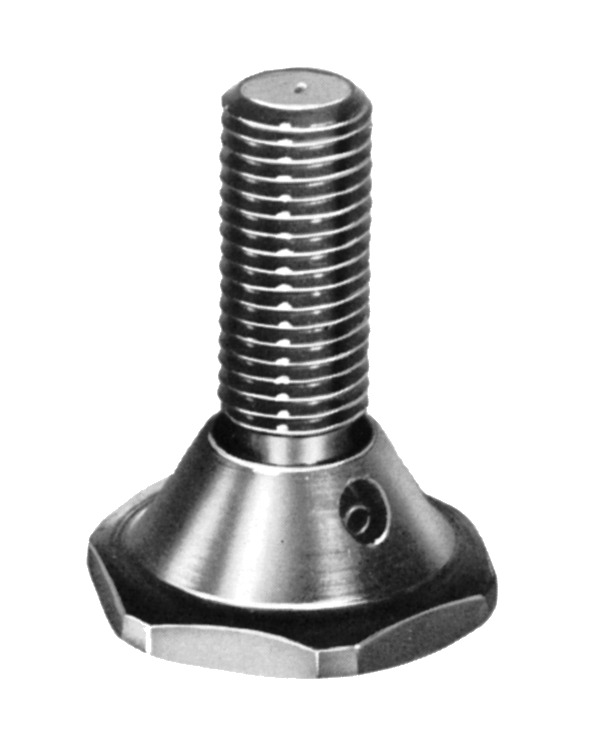

Extra Large Adjusting Screw Assemblies

Part Number

Clamp Screw
Diameter

Thread
Size

Swivel Base
Hex Size

Swivel Base
Height

Overall
Height

H-585 5/8" 5/8"-11 1-3/4" 7/8" 3"
H-755 3/4" 3/4"-10 2" 7/8" 3-1/2"
H-1005 1" 1"-8 2-1/2" 1-5/16" 3-1/2"
H-1505 1-1/2" 1-1/2"-6 3" 1-5/8" 5-5/8"

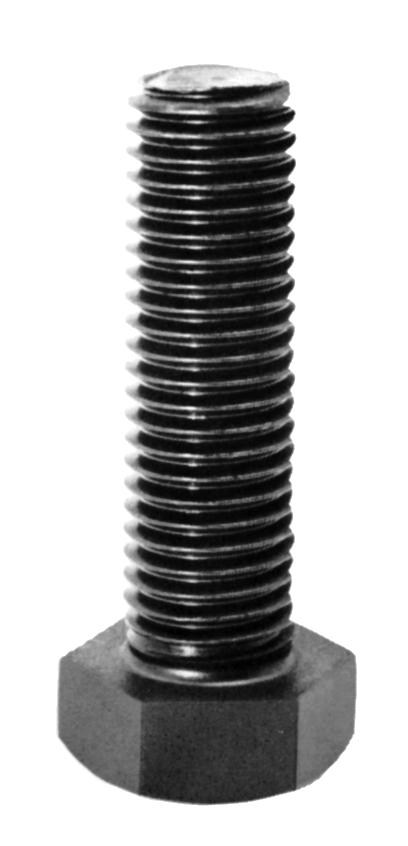

Hex Head Adjusting Screws

Part Number

Clamp Screw
Diameter

Thread
Size

Head
Thickness

Height Above
Head

H-58 5/8" 5/8"-11 7/16" 2-1/2"
H-75 3/4" 3/4"-10 1/2" 2-1/2"
H-100 1" 1"-8 5/8" 2-1/2"

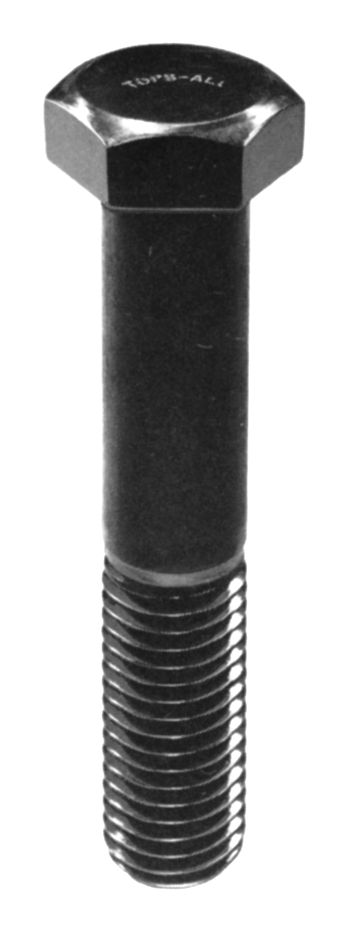

High Strength, Grade 5, Hex Head Clamping Screws

Part Number

Length

Thread
Size

Hex
Size

Thickness

S-1235 3-1/2" 1/2"-13 3/4" 5/16"
S-5832 3-1/4" 5/8"-11 15/16" 25/64"
S-5835 3-1/2" 5/8"-11 15/16" 25/64"
S-5837 3-3/4" 5/8"-11 15/16" 25/64"
S-7540 4" 3/4"-10 1-1/8" 15/32"
S-7545 4-1/2" 3/4"-10 1-1/8" 15/32"
S-1045 4-1/2" 1"-8 1-1/2" 39/64"
S-1050 5" 1"-8 1-1/2" 39/64"
S-1055 5-1/2" 1"-8 1-1/2" 39/64"
S-1256 6" 1-1/4"-7 1-7/8" 3/4"
S-1506 6" 1-1/2"-6 2-1/4" 7/8"

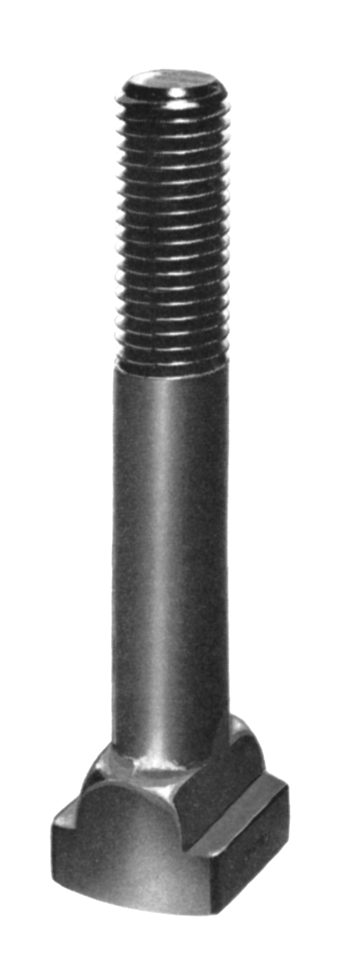

High Strength, T-Slot Bolts

Part Number

Length

Thread
Size

TB-5845 4-1/2" 5/8"-11
TB-7550 5" 3/4"-10
TB-1060 6" 1"-8

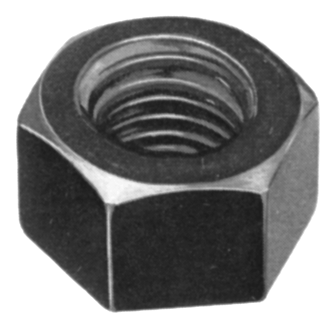

Heavy Duty Hex Nuts for T-Slot Bolts

Part Number

Thread
Size

Hex
Size

Thickness

N-58 5/8"-11 1-1/16" 39/64"
N-75 3/4"-10 1-1/4" 47/64"
N-100 1"-8 1-5/8" 63/64"

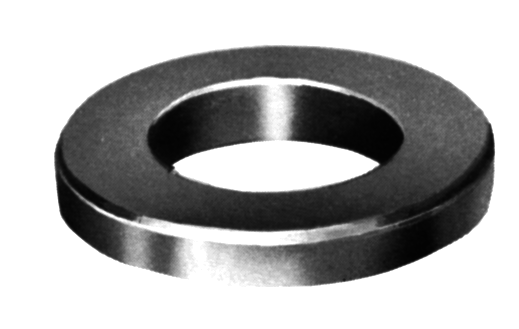

Round Mold Washers

Part Number

Screw
Diameter
(I.D.)

Diameter
(O.D.)

Thickness

RW-58 5/8" 1-1/4" 1/4"
RW-75 3/4" 1-1/2" 1/4"
RW-100 1" 2" 5/16"

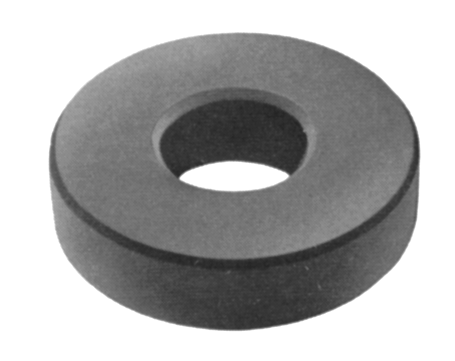

Extra Large Round Mold Washers

Part Number

Screw
Diameter
(I.D.)

Diameter
(O.D.)

Thickness

RW-586 5/8" 1 3/4" 1/2"
RW-756 3/4" 2" 1/2"
RW-1006 1" 2 1/2" 5/8"
RW-1256 1-1/4" 3" 5/8"
RW-1506 1-1/2" 3-1/2" 5/8"

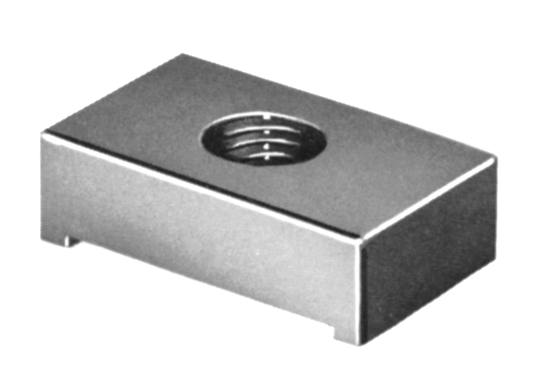

Extra Large no-Twist Rectangular Washers

Part Number

Screw
Diameter
(I.D.)

Length

Thickness
Above Clamp

Clamp
Width

SW-127 1/2" 2-1/4" 3/4" 1-1/4"
SW-587 5/8" 2-1/4" 3/4" 1-1/4"
SW-757 3/4 2-1/2" 3/4 1-1/2"
SW-1007 1" 3" 1" 2"
