Mold Temperature Controllers

VT Series w/LS Controller






The VT Series Temperature Controller is built for long-term,
dependable, full-time operations.  Designed by veteran engineers that know
the industry, the VT Series is the new "old soldier" for temperature control.





Features:
  • Stainless Steel Cabinetry
  • Solenoid Cooling Valve
  • Operating Temperatures to 250 F
  • LS Microprocessor Instrument
  • Heaters to 16 KW and Pumps to 3 HP
  • Custom Cast Pump and Tank Assembly
  • Separate Heating and Cooling Tanks

The VT Series Temperature Controller is built to last.  With a stainless steel cabinet, cast iron, twin tanks and motor casing, the VT Series Temperature Controller is built to last.

The pump assembly has a bronze pump impeller and pump seal flush, as well as a stainless steel pump motor shaft.

A stainless steel cabinet is set on casters for portability and can be removed for easy access to electrical and mechanical parts.

The LS Controller unit has a continuous "To Process" temperature display, selectable set point temperature display, an On/Off rocker switch, and status indicator lights for power on, pump on, heat on, and cool on.

Safety features include; a water supply pressure switch, motor overloads, pressure relief valve, high temperature limit, and fused control circuit.

A 10-foot power cord, fused transformer and process pump motor starter are all standard on the VT Series Temperature Controller.

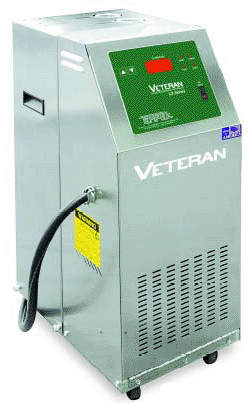

VT Series Mold Temperature Controller w/ Microprocessor





LS Microprocessor


VT SERIES w/ 6KW HEATER


150

175

1100

1150 1200 1300
PROCESS
PUMP
HP .50 .750 1.0 1.50 2.0 3.0
GPM 20 35 45 62 75 80
PSI 30 30 30 30 30 30
FULL LOAD
AMPERAGE 1
230/3/60 17.0 17.8 18.6 20.2 21.8 24.6
460/3/60 8.5 8.9 9.3 10.1 10.9 12.3
DIMENSIONS HEIGHT 27" 27" 27" 27" 27" 27"
WIDTH 11" 11" 11 11" 11" 11"
DEPTH 16" 16" 16" 16" 16" 16"
CONNECTIONS TO/FROM
PROCESS
1-1/4" 1-1/4" 1-1/4" 1-1/4" 1-1/4" 1-1/4"
WATER SUPPLY
DRAIN
1/2" 1/2" 1/2" 1/2" 1/2" 1/2"
WEIGHT (Shipping) 195 lbs 200 lbs 205 lbs 205 lbs 210 lbs 220 lbs

VT SERIES w/ 10KW HEATER


250

275

2100

2150 2200 2300
PROCESS
PUMP
HP .50 .750 1.0 1.50 2.0 3.0
GPM 20 35 45 62 75 80
PSI 30 30 30 30 30 30
FULL LOAD
AMPERAGE 1
230/3/60 27.0 27.8 28.6 30.2 31.8 34.6
460/3/60 13.5 13.9 14.3 15.1 15.9 17.3
DIMENSIONS HEIGHT 27" 27" 27" 27" 27" 27"
WIDTH 11" 11" 11 11" 11" 11"
DEPTH 16" 16" 16" 16" 16" 16"
CONNECTIONS TO/FROM
PROCESS
1-1/4" 1-1/4" 1-1/4" 1-1/4" 1-1/4" 1-1/4"
WATER SUPPLY
DRAIN
1/2" 1/2" 1/2" 1/2" 1/2" 1/2"
WEIGHT (Shipping) 198 lbs 200 lbs 208 lbs 208 lbs 213 lbs 223 lbs

VT SERIES w/ 16KW HEATER


350

375

3100

3150 3200 3300
PROCESS
PUMP
HP .50 .750 1.0 1.50 2.0 3.0
GPM 20 35 45 62 75 80
PSI 30 30 30 30 30 30
FULL LOAD
AMPERAGE 1
230/3/60 42.0 42.8 43.6 45.2 46.8 49.6
460/3/60 21.0 21.4 21.8 22.6 23.4 24.8
DIMENSIONS HEIGHT 27" 27" 27" 27" 27" 27"
WIDTH 11" 11" 11 11" 11" 11"
DEPTH 16" 16" 16" 16" 16" 16"
CONNECTIONS TO/FROM
PROCESS
1-1/4" 1-1/4" 1-1/4" 1-1/4" 1-1/4" 1-1/4"
WATER SUPPLY
DRAIN
1/2" 1/2" 1/2" 1/2" 1/2" 1/2"
WEIGHT (Shipping) 200 lbs 205 lbs 210 lbs 210 lbs 220 lbs 225 lbs

1 Full Load Amps shown. No allowance for in-rush. Full Amps are higher than Run Load Amps and must be used for sizing disconnects and supply wiring
