TVL Series

Vacuum Loaders



A compact loader for all small throughput applications
The TVL Loader's modular design is flexible and efficient. It
offers no-tool access and push-fit assembly for fast clean-out.





Features:
  • Self-Contained
  • Throughput Up to 100 Pounds Per Hour
  • Modular Design
  • Available in Carbon Steel or Stainless Steel
  • Individually Controlled

The TVL Series Vacuum Loader is more flexible and efficient than traditional hopper/loader set ups.  Standard loaders can convey up to 50 pounds per hour, but with an optional filter blowback, the TVL Series can achieve rates up to 100 pounds per hour throughput.

No-tools access, quick-release motor assembly, drop-in filter and push-fit assembly make maintenance and material change fast and easy.

Each unit comes with its own controller which can be mounted on the loader, or at eye level with the optional remote kit.

Standard TVL Loaders are constructed of durable, painted carbon steel.  Optional stainless steel construction is available for applications that require contamination-free conveying.

The TVL Series Loader offers flexibility with Temptek's mix and match components and options which allows this unit to be configured for your specific needs.

THL Series Vacuum Loader


THL VACUUM LOADER SPECIFICATIONS

PERFORMANCE MAX. INJECTION MOLD
MACHINE SIZE
300 Tons
MAX. EXTRUDER SCREW SIZE 1"
THROUGHPUT w/out BLOWBACK 50 lbs/hour
THROUGHPUT W/
BLOWBACK
100 lbs/hour
MAX CONVEYING
DISTANCE
25'
VACUUM MOTOR 3/8 HP
MATERIAL LINE SIZE 1.5"
VOLTAGE 12 volt/ 1 phase/ 60Hz 7
FILTER TYPE Dacron Disc
FILTER AREA 31"
MATERIAL PICKUP DEVICE  Vertical Feed Tube and
 10' Flexible Hose
COMPRESSED AIR REQUIREMENT
(for optional blowback)
PRESSURE 60 PSI
CONSUMPTION 1.4'/min
NPT FITTING 31"
WEIGHT SHIPPING 40 lbs
OPERATING 13.9 lbs

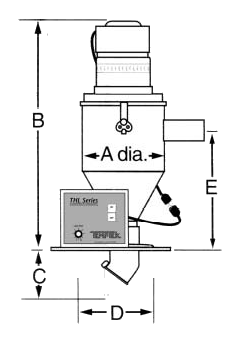

THL Vacuum Loader Diamensions

DIMENSIONS
A - HOPPER DEPTH 6.5"
B - HEIGHT ABOVE
MOUNTING PLATE
18.5"
C - DEPTH BELOW
MOUNTING PLATE
2.75"
D - CLEARANCE HOLE
DIAMETER
6.625"
E - HEIGHT to CENTER
of MATERIAL INLET
9"
