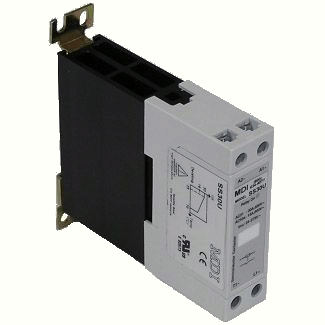

Solid State Relays
30 AMP Series

• AC semiconductor contactor
• Zero switching
• Direct-Copper Bonding (DCB) technology
• LED indicators
• Cage clamp terminals
• 2 input ranges: 4-32 VDC and 24-275 VAC/24-48VDC
• Operational rating to 30 AACrms and 600 VAC
• Non-repetitive voltage: up to 1200 Vp
• Operating temperature: -30 to 80°C
• Junction temperature: 125°C

Solid State Relays are advantageous in industrial heating applications requiring high cycle rates. These relays have integral heat sinks and are ready to mount on chassis or DIN-rail. Standard housing dimensions enable straight-forward replacement of alternative products and allow for two standard terminal configurations. Cage clamp terminals are used with cable up to 10 AWG. An LED indicates the status of the control input. The superior heat-transfer efficiency, combined with a robust power management system, makes this a highly reliable product that can meet the most stringent functional requirements.

View All Relays

Our solid state replays are comparable with the following brands: ABB, ACI, ACT, Advanced Controls, American Zettler, Amerite, ATC, CCI, Culdue, Chromalox, Clare, Comus, Cougar Electronics, Crouzet, Crydom, Dare Electronics, Diversified, Eaton, Eroelectric, Esterline, Gama 221, Idec, Lech, magnacraft, Micropac, National Controls, NEC, Ogden, Omron, Opto 22, Panasonic, Phoenix Contact, Relpol, Rockwell Automation, Schneider Electric, Sharp, Sipex, Teldyne, Tyco, Vertex.
