Solid State Relays
50 AMP Series




  • AC semiconductor contactor
  • Zero switching
  • Direct-Copper Bonding (DCB) technology
  • LED indicator
  • Cage clamp terminals
  • 2 input ranges: 4-32 VDC and 24-275 VAC/24-48VDC
  • Operational rating to 50 AACrms and 600 VAC
  • Non-repetitive voltage: up to 1200Vp
  • Operating temperature: -30 to 80°C
  • Junction temperature: 120°C

50 AMP Solid State Relay w/ integrated heatsink


Solid State Relays are advantageous in industrial heating applications requiring high cycle rates. These relays have integral heat sinks and are ready to mount on chassis or DIN-rail. Standard housing dimensions enable straight-forward replacement of alternative products and allow for two standard terminal configurations. Cage clamp terminals are used to ensure secure load connection with cable up to 3 AWG or 2 wires at 6 AWG. An LED indicates the status of the control input. The superior heat-transfer efficiency, combined with a robust power management system, makes this a highly reliable product that can meet the most stringent functional requirements.

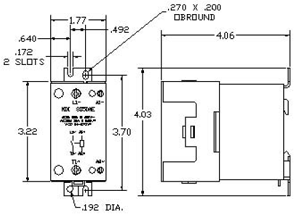

50 AMP Solid State Relay Diagram

SELECTION GUIDE
MODEL

Control Voltage

Rated Current
SS50AU

24-275 VAC
24-48 DAC

50 AMP
SS50DU

4-32 VDC

50 AMP


View All Relays


Our solid state replays are comparable with the following brands: ABB, ACI, ACT, Advanced Controls, American Zettler, Amerite, ATC, CCI, Culdue, Chromalox, Clare, Comus, Cougar Electronics, Crouzet, Crydom, Dare Electronics, Diversified, Eaton, Eroelectric, Esterline, Gama 221, Idec, Lech, magnacraft, Micropac, National Controls, NEC, Ogden, Omron, Opto 22, Panasonic, Phoenix Contact, Relpol, Rockwell Automation, Schneider Electric, Sharp, Sipex, Teldyne, Tyco, Vertex.
