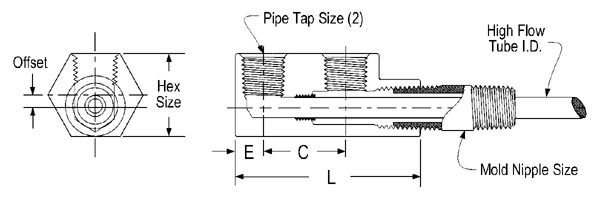

High Flow Cascade Assembly

  • 35-65% higher flow rates than standard nipple type cascades
  • Offset design provides more sealing threads without pipe interference
  • Assemblies include brass head, 12" high flow stainless tube and 2" long galvanized pipe nipple
  • NPT Mold Nipple Sizes: From 1/16" to 3/8"
  • NPT Pipe Tap Sizes: From 1/16" to 1/4"
  • Tube O.D.: From 1/8" to 3/8"
  • Hex Sizes: From 5/8" to 1-1/8"


PART
NO.		 MOLD
NIPPLE
SIZE
(NPT)		 PIPE
TAP
SIZE
(NPT)		 HIGH
FLOW
TUBE O.D.
(12" Long)		 HEX
SIZE		 OFF
SET		 "E" "C" "L"
HF16N 1/16" 1/16" 1/8" 5/8" 3/32" 1/4" 1/2" 1-1/4"
HF186N 1/8" 1/8" 3/16" 3/4" 3/32" 5/16" 11/16" 1-5/8"
HF181N 1/8" 1/8" 3/16" 3/4" 3/32" 5/16" 1" 1-15/16"
HF146N-4 1/4" 1/4" 1/4" 1" 5/32" 11/32" 11/16" 1-7/8"
HF141N-4 1/4" 1/4" 1/4" 1" 5/32" 11/32" 1" 2-3/16"
HF381N-4 3/8" 1/4" 3/8" 1-1/8" 1/8" 11/32" 1" 2-1/4"

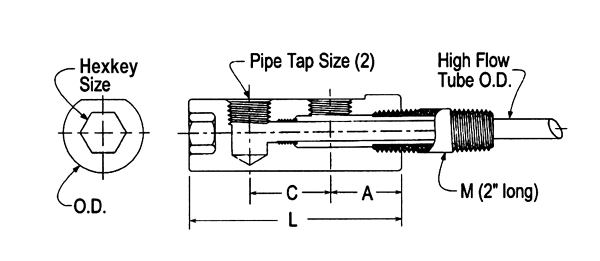

Hexkey Cascade Assembly

  • Hexkey cascades are round and install with an allen wrench
  • May be installed with minimal clearance or very close together where space is limited
  • High flow design provides maximum cooling rates
  • Easy to install and remove
  • Assemblies include brass head, 12' high flow stainless tube and 2" long galvanized pipe nipple
  • NPT Mold Nipple Sizes: From 1/16" to 1/2"
  • NPT Pipe Tap Sizes: From 1/16" to 1/4"
  • High Flow Tube O.D.: From 1/8" to 3/8"
  • Hexkey Sizes: From 5/16" to 1/2"


PART
NO.		 MOLD
NIPPLE
SIZE "M"
(NPT)		 PIPE
TAP
SIZE
(NPT)		 HIGH
FLOW
TUBE O.D.
(12" Long)		 "L" "C" "A" HEX
KEY
SIZE		 NOMINAL
CLEARANCE
DRILL		 ACTUAL O.D.
E16N 1/16 1/16 1/8" 1.625" 9/16" 1/2" 5/16" 5/8" .610"
E16N-2 1/8 1/16 3/16" 1.687" 9/16" 9/16" 3/8" 3/4" .735"
E186N 1/8 1/8 3/16" 1.875" 11/16" 9/16" 3/8" 7/8" .860"
E181N 1/8 1/8 3/16" 2.187" 1" 9/16" 3/8" 7/8" .860"
E146N 1/4 1/8 1/4" 2.187" 11/16" 13/16" 1/2" 1" .985"
E146N-4 1/4 1/4 1/4" 2.312" 11/16" 7/8" 1/2" 1" .985"
E141N 1/4 1/8 1/4" 2.500" 1" 13/16" 1/2" 1" .985"
E141N-4 1/4 1/4 1/4" 2.625" 1" 7/8" 1/2" 1" .985
E381N-4 3/8 1/4 5/16" 2.625" 1" 7/8" 1/2" 1" .985
E121N-4 1/2 1/4 3/8" 2.812" 1" 1" 1/2" 1-1/4" 1.235

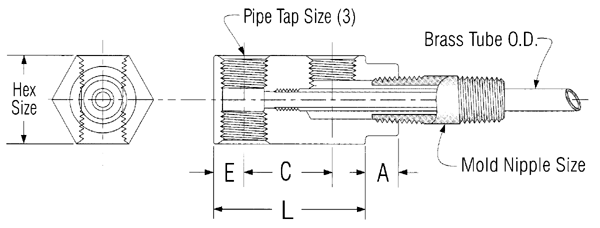

Nipple Type Cascade Assembly

  • Solid brass heads are precision machined for accurate assembly
  • Cascade assemblies are available in special pipe tap and tube combinations
  • Assemblies include brass head, 12" brass tube, 2" long galvanized pipe nipple and brass pipe plug
  • NPT Mold Nipple Sizes: From 1/8" to 3/4"
  • NPT Pipe Tap Sizes: From 1/16" to 3/8"
  • High Flow Tube O.D.: From 3/16" to 5/8"
  • Hex Sizes: From 3/4" to 1-1/2"


PART
NO.		 MOLD
NIPPLE
SIZE "M"
(NPT)		 PIPE
TAP
SIZE
(NPT)		 BRASS
TUBE
O.D.		 HEX
SIZE		 "E" "C" "A" "L"
16N 1/8 1/16 3/16" 3/4" 7/32" 1/2" 9/32" 15/16"
186N 1/8 1/8 3/16" 7/8" 21/64" 11/16" 9/32" 1-11/32"
181N 1/8 1/8 3/16" 7/8" 21/64" 1" 9/32" 1-21/32"
146N 1/4 1/8 1/4" 1" 21/64" 11/16" 7/32" 1-11/32"
146N-4 1/4 1/4 1/4" 1" 21/64" 1" 7/16" 1-21/32"
141N 1/4 1/8 1/4" 1" 21/64" 1" 7/16" 1-21/32"
141N-4 1/4 1/4 1/4" 1" 21/64" 1" 13/32" 1-11/16"
381N 3/8 1/8 5/16" 1" 11/32" 1" 13/32" 1-11/16"
381N-4 3/8 1/4 5/16" 1" 11/32" 1" 9/16" 1-13/16"
121N-4 1/2 1/4 7/16" 1-1/4" 13/32" 1" 9/16" 1-13/16"
341N-4 3/4 3/8 5/8" 1-1/2" 1/2" 1-1/4" 3/4" 2-1/4"

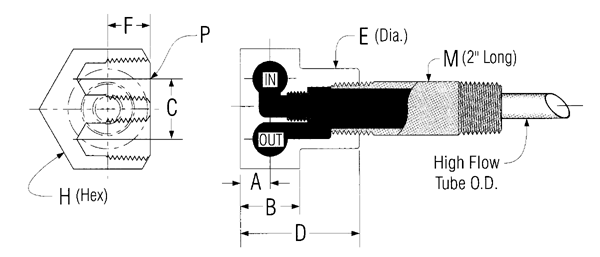

Compact Cascade Assembly

  • Solid brass heads are precision machined for accurate assembly
  • Cascade assemblies are available in special pipe tap and tube combinations
  • Assemblies include brass head, 12" brass tube, 2" long galvanized pipe nipple and brass pipe plug
  • NPT Mold Nipple Sizes: From 1/8" to 3/4"
  • NPT Pipe Tap Sizes: From 1/16" to 3/8"
  • High Flow Tube O.D.: From 3/16" to 5/8"
  • Hex Sizes: From 3/4" to 1-1/2"

PART
NO.		 MOLD
NIPPLE
SIZE "M"
(NPT)		 PIPE
TAP
"P"
(NPT)		 TUBE
O.D.		 HEX
SIZE
"H"		 "A" "B" "C" "D" "E" "F"
ET1816 1/8 1/16 3/16" 15/16" 7/32" 7/16" 1/2" 1" 5/8" .330"
ET1418 1/4 1/8 1/4" 1-1/4" 5/16" 5/8" 11/16" 1-1/4" 3/4" .410"
ET1414 1/4 1/4 1/4" 1-1/2" 3/8" 3/4" 3/4" 1-1/2" 7/8" .540"
ET3814 3/8 1/4 5/16" 1-1/2" 3/8" 3/4" 3/4" 1-1/2" 1" .540"


High Flow Brass Cascade Head Only

  • High flow cascade heads are available in special pipe tap and tube combinations
  • All dimensions same as above for corresponding part number
PART
NO.		 USE WITH
HIGH FLOW
TUBE NO.
HF16H HF125T-
HF186H HF187T-
HF181H HF187T-
HF146H-4 HF250T-
HF141H-4 HF250T-
HF381H-4 HF375T-


Hexkey Brass Cascade Head Only

  • Solid brass heads
  • All holes are threaded
  • Hexkey cascade heads use high flow stainless steel tubes
  • NPT Mold Nipple Sizes: From 1/16" to 1/2"
  • NPT Pipe Tap Sizes: From 1/16" to 1/4"
  • High Flow Tube O.D.: From 1/8" to 3/8"
PART
NO.		 USE WITH HIGH FLOW TUBE NO.
E16H

HF125T-
E16H-2 HF187T-
E186H HF187T-
E181H HF187T-
E146H HF250T-
E146H-4 HF250T-
E141H HF250T-
E141H-4 HF250T-
E381H-4 HF312T-
E121H-4 HF375T-


Nipple Type Cascade Head Only

  • Solid brass heads
  • All holes are threaded
  • Complete with brass pipe plug
  • Available with special pipe tap sizes, tube thread sizes and hole locations
  • NPT Mold Nipple Sizes: From 1/8" to 3/4"
  • NPT Pipe Tap Sizes: From 1/16" to 3/8"



PART
NO.		 USE
TUBE
NO.
16H 187T-
186H 187T-
181H 187T-
146H 250T-
146H-4 250T-
141H 250T-
141H-4 250T-
381H 312T-
381H-4 312T-
121H-4 437T-
341H-4 625T-


Compact Cascade Head Only

  • Solid brass heads
  • All holes are threaded
  • NPT Mold Nipple Sizes: From 1/8" to 3/8"
  • NPT In/Out Pipe Sizes: From 1/16" to 1/4"
PART
NO.		 MOLD
NIPPLE
(NPT)		 IN/OUT
PIPE
(NPT)		 USE HIGH
FLOW
TUBE NO.
ET1816H 1/8 1/16 HF187T-
ET1418H 1/4 1/8 HF250T-
ET1414H 1/4 1/4 HF250T-
ET3814H 3/8 1/4 HF312T-


Brass Tube

  • Durable half hard brass
  • Available with custom tubes threaded on one or both ends
  • Half-hard temper for reliable performance
  • Bulk tubes available
  • Tube O.D.: From .125" to .625"
  • Tube I.D.: From .062" to .495"
  • Thread Sizes: From 5-44 to 5/8-18
  • Thread Lengths: From 3/16" to 5/8"
  • Overall Lengths: 12", 18", 24", 36"
PART
NO.		 OVERALL
LENGTH		 TUBE
O.D.		 TUBE
I.D.		 THREAD
SIZE		 THREAD
LENGTH
125T- 12" .125" .062" 5-44 3/16"
125T- 18" .125" .062" 5-44 3/16"
125T- 24" .125" .062" 5-44 3/16"
125T- 36" .125" .062" 5-44 3/16"
187T- 12" .187" .123" 10-32 3/16"
187T- 18" .187" .123" 10-32 3/16"
187T- 24" .187" .123" 10-32 3/16"
187T- 36" .187" .123" 10-32 3/16"
250T- 12" .250" .170" 1/4-28 1/4"
250T- 18" .250" .170" 1/4-28 1/4"
250T- 24" .250" .170" 1/4-28 1/4"
250T- 36" .250" .170" 1/4-28 1/4"
312T- 12" .312" .210" 5/16-24 5/16"
312T- 18" .312" .210" 5/16-24 5/16"
312T- 24" .312" .210" 5/16-24 5/16"
312T- 36" .312" .210" 5/16-24 5/16"
375T- 12" .375" .273" 3/8-24 3/8"
375T- 18" .375" .273" 3/8-24 3/8"
375T- 24" .375" .273" 3/8-24 3/8"
375T- 36" .375" .273" 3/8-24 3/8"
437T- 12" .437" .307" 7/16-20 7/16"
437T- 18" .437" .307" 7/16-20 7/16"
437T- 24" .437" .307" 7/16-20 7/16"
437T- 36" .437" .307" 7/16-20 7/16"
625T- 12" .625" .495" 5/8-18 5/8"
625T- 18" .625" .495" 5/8-18 5/8"
625T- 24" .625" .495" 5/8-18 5/8"
625T- 36" .625" .495" 5/8-18 5/8"


High Flow Stainless Steel Tube

  • Increases flow up to 300%
  • All stainless steel construction for optimal performance, durability and strength
  • Special thin wall stainless tube for maximum flow and quicker cycles
  • Cut to exact lengths at no extra charge
  • Tube O.D.: From .093" to .437"
  • Tube I.D.: From .077" to .407"
  • Thread Sizes: From 5-44 to 1/2-20
  • Thread Lengths: From 1/8" to 1/2"
  • Overall Lengths: 12", 18", 24", 36"
PART
NO.		 OVERALL
LENGTH		 TUBE
O.D.		 TUBE
I.D.		 THREAD
SIZE		 THREAD
LENGTH
HF093T-12 12" .093" .077" 5-44 1/8"
HF093T-18 18" .093" .077" 5-44 1/8"
HF093T-24 24" .093" .077" 5-44 1/8"
HF093T-36 36" .093" .077" 5-44 1/8"
HF125T-12 12" .125" .109" 10-32 3/16"
HF125T-18 18" .125" .109" 10-32 3/16"
HF125T-24 24" .125" .109" 10-32 3/16"
HF125T-36 36" .125" .109" 10-32 3/16"
HF187T-12 12" .187" .167" 1/4-28 1/4"
HF187T-18 18" .187" .167" 1/4-28 1/4"
HF187T-24 24" .187" .167" 1/4-28 1/4"
HF187T-36 36" .187" .167" 1/4-28 1/4"
HF250T-12 12" .250" .230" 5/16-24 5/16"
HF250T-18 18" .250" .230" 5/16-24 5/16"
HF250T-24 24" .250" .230" 5/16-24 5/16"
HF250T-36 36" .250" .230" 5/16-24 5/16"
HF312T-12 12" .312" .285" 3/8-24 3/8"
HF312T-18 18" .312" .285" 3/8-24 3/8"
HF312T-24 24" .312" .285" 3/8-24 3/8"
HF312T-36 36" .312" .285" 3/8-24 3/8"
HF375T-12 12" .375" .345" 7/16-20 7/16"
HF375T-18 18" .375" .345" 7/16-20 7/16"
HF375T-24 24" .375" .345" 7/16-20 7/16"
HF375T-36 36" .375" .345" 7/16-20 7/16"
HF437T-12 12" .437" .407" 1/2-20 1/2"
HF437T-18 18" .437" .407" 1/2-20 1/2"
HF437T-24 24" .437" .407" 1/2-20 1/2"
HF437T-36 36" .437" .407" 1/2-20 1/2"
