Hose Barbs


Standard Hose Barbs:
Male Pipe Thread
Female Pipe Thread
Hose Inserts - Brass Combination
Hose Splicers
45° Barb Elbow
90° Barb Elbow

Push-Lock Hose Barbs:
Male Pipe Thread
Female Pipe Thread
Hose Inserts - Brass Combination





Standard Hose Barb

For Use with Air/Water/Oil


Male Pipe Thread

  • NPT Thread Sizes:  1/8" to 1"

  • Hose ID Sizes:  1/4" to 1-1/4"
PART
NO.		 HOSE
I.D.		 NPT
M1418 1/4" 1/8
M1414 1/4" 1/4
M1438 1/4" 3/8
M1412 1/4" 1/2
M51618 5/16" 1/8
M51614 5/16" 1/4
M51638 5/16" 3/8
M51612 5/16" 1/2
M3818 3/8" 1/8
M3814 3/8" 1/4
M3838 3/8" 3/8
M3812 3/8" 1/2
M3834 3/8" 3/4
M1214 1/2" 1/4
M1238 1/2" 3/8
M1212 1/2" 1/2
M1234 1/2" 3/4
M5814 5/8" 1/4
M5838 5/8" 3/8
M5812 5/8" 1/2
M5834 5/8" 3/4
M3438 3/4" 3/8
M3412 3/4" 1/2
M3434 3/4" 3/4
M341 3/4" 1
M112 1" 1/2
M134 1" 3/4
M11 1" 1
M1141 1-1/4" 1

Female Pipe Thread

  • NPT Thread Sizes:  1/8" to 3/4"
  • Hose ID Sizes:  1/4" to 1"


PART
NO.		 HOSE
I.D.		 NPT
F1418 1/4" 1/8
F1414 1/4" 1/4
F1438 1/4" 3/8
F51618 5/16" 1/8
F51614 5/16" 1/4
F51638 5/16" 3/8
F3818 3/8" 1/8
F3814 3/8" 1/4
F3838 3/8" 3/8
F3812 3/8" 1/2
F1214 1/2" 1/4
F1238 1/2" 3/8
F1212 1/2" 1/2
F3434 3/4" 3/4
F134 1" 3/4

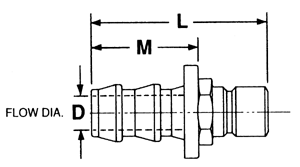

Brass Combination Hose Insert





  • Hose ID Sizes:  1/4" to 3/4"



SERIES 200
1/4" Hole
PART NO. HOSE
I.D.		 "D" "M" "L"
200-4 1/4" 3/16" 7/8" 1-3/8"
200-5 5/16" 1/4" 7/8" 1-3/8"
200-6 3/8" 1/4" 1-1/16" 1-9/16"
200-8 1/2" 1/4" 1-1/16" 1-9/16"



SERIES 300
3/8" Hole
PART NO. HOSE I.D. "D" "M" "L"
300-4 1/4" 3/16" 7/8" 1-13/16"
300-5 5/16" 1/4" 7/8" 1-13/16"
300-6 3/8" 9/32" 1-1/16" 1-13/16"
300-8 1/2" 11/32" 1-1/16" 1-13/16"



SERIES 500
1/2" Hole
PART NO. HOSE I.D. "D" "M" "L"
500-8 1/2" 13/32" 1-1/16" 2"
500-12 3/4" 9/16" 1-1/2" 2-1/2"











Hose Splicer

  • Hose ID Sizes:  1/4" to 3/4"
PART
NO.		 HOSE
I.D.
S14 1/4"
S516 5/16"
S38 3/8"
S12 1/2"
S58 5/8"
S34 3/4"

45° Barb Elbow Male Pipe Thread







  • NPT Thread Sizes:  1/8" to 3/8"

  • Hose ID Sizes:  1/4" to 5/8"
PART
NO.		 HOSE
I.D.		 NPT
45BBE14X18 1/4" 1/8
45BBE14X14 1/4" 1/4
45BBE38X18 3/8" 1/8
45BBE38X14 3/8" 1/4
45BBE38X38 3/8" 3/8
45BBE12X14 1/2" 1/4
45BBE12X38 1/2" 3/8
45BBE58X38 5/8" 3/8

90° Barb Elbow Male Pipe Thread

  • NPT Thread Sizes:  1/8" to 1/2"
    Hose ID Sizes:  1/4" to 1/2"
PART
NO.		 HOSE
I.D.		 NPT
90BBE14X18 1/4" 1/8
90BBE14X14 1/4" 1/4
90BBE14X38 1/4" 3/8
90BBE516X18 5/16" 1/8
90BBE516X14 5/16" 1/4
90BBE516X38 5/16" 3/8
90BBE38X18 3/8" 1/8
90BBE38X14 3/8" 1/4
90BBE38X38 3/8" 3/8
90BBE38X12 3/8" 1/2
90BBE12X14 1/2" 1/4
90BBE12X38 1/2" 3/8
90BBE12X12 1/2" 1/2

Push-Lock Hose Barbs


Male Pipe Thread

  • NPT Thread Sizes:  1/8" to 1/2"
    Hose ID Sizes:  1/4" to 1/2"
PART
NO.		 HOSE
I.D.		 NPT
M1418PL 1/4" 1/8
M1414PL 1/4" 1/4
M1438PL 1/4" 3/8
M3818PL 3/8" 1/8
M3814PL 3/8" 1/4
M3838PL 3/8" 3/8
M3812PL 3/8" 1/2
M1214PL 1/2" 1/4
M1238PL 1/2" 3/8
M1212PL 1/2" 1/2

Female Pipe Thread

  • NPT Thread Sizes:  1/8" to 1/2"
    Hose ID Sizes:  1/4" to 1/2"
PART
NO.		 HOSE
I.D.		 NPT
F1418PL 1/4" 1/8
F1414PL 1/4" 1/4
F1438PL 1/4" 3/8
F3818PL 3/8" 1/8
F3814PL 3/8" 1/4
F3838PL 3/8" 3/8
F3812PL 3/8" 1/2
F1214PL 1/2" 1/4
F1238PL 1/2" 3/8
F1212PL 1/2" 1/2



Hose Splicer

  • Hose ID Sizes:  1/4" to 1/2"
PART
NO.		 HOSE
I.D.
S14PL 1/4"
S38PL 3/8"
S12PL 1/2"
