Pipe Fittings
Adapter
Bushing
Counter Sunk Hex Head Plug
Coupling - Female
Coupling - Female - Reducing
Cover Plug
Female Pipe Tee



Male Branch
Mold Pressure Plug
Pipe Cap
Pipe Cross
Piston Tube
Square Head Plug
Union



Square Head Plug

  • NPT Thread Sizes: From 1/8" to 1"



BRASS GALVANIZED
PART NO. NPT
THREAD
SIZE		 PART NO. NPT
THREAD
SIZE
SP18B 1/8 SP18G 1/8
SP14B 1/4 SP14G 1/4
SP38B 3/8 SP38G 3/8
SP12B 1/2 SP12G 1/2
SP34B^ 3/4 SP34G 3/4
SP1B^ 1 SP1G 1

^Bronze


Bushing

  • NPT Thread Sizes: From 1/4" Male x 1/8" Female to 1-1/2" Male x 1" Female



BRASS GALVANIZED
PART NO. NPT
THREAD
SIZE
(M X F)		 PART NO. NPT
THREAD
SIZE
(M X F)
B14X18B 1/4 X 1/8 B14X18G 1/4 X 1/8
B38X18B^ 3/8 X 1/8 B38X18G 3/8 X 1/8
B38X14B 3/8 X 1/4 B38X14G 3/8 X 1/4
B12X18B 1/2 X 1/8 B12X18G 1/2 X 1/8
B12X14B 1/2 X 1/4 B12X14G 1/2 X 1/4
B12X38B 1/2 X 3/8 B12X38G 1/2 X 3/8
B34X18B^ 3/4 X 1/8 B34X18G 3/4 X 1/8
B34X14B^ 3/4 X 1/4 B34X14G 3/4 X 1/4
B34X38B^ 3/4 X 3/8 B34X38G 3/4 X 3/8
B34X12B 3/4 X 1/2 B34X12G 3/4 X 1/2
B1X14B^ 1 X 1/4 B1X14G 1 X 1/4
B1X38B^ 1 X 3/8 B1X38G 1 X 3/8
B1X12B^ 1 X 1/2 B1X12G 1 X 1/2
B1X34B^ 1 X 3/4 B1X34G 1 X 3/4
B114X34B^ 1-1/4 X 3/4 B114X34G 1-1/4 X 3/4
B114X1B^ 1-1/4 X 1 B114X1G 1-1/4 X 1
B112X1B^ 1-1/2 X 1 B112X1G 1-1/2 X 1

^Bronze


Hex Nipple

  • NPT Thread Sizes: From 1/8" to 1"



BRASS
PART NO. NPT
THREAD
SIZE
HN18B 1/8
HN14B 1/4
HN38B 3/8
HN12B 1/2
HN34B 3/4
HN1B^ 1

^Bronze


Male Reducing Hex Nipple

  • NPT Thread Sizes: From 1/8" Male x 1/16" Female to 3/4" Male x 1/2" Female



BRASS
PART NO. NPT
THREAD
SIZE
MR18116B 1/8 X 1/16
MR1418B 1/4 X 1/8
MR3818B 3/8 X 1/8
MR3814B 3/8 X 1/4
MR1214B 1/2 X 1/4
MR1238B 1/2 X 3/8
MR3412B 3/4 X 1/2

Adapter

  • NPT Thread Sizes: From 1/8" Male x 1/8" Female to 3/4" Male x 3/4" Female



BRASS
PART NO. NPT
THREAD
SIZE
(F X M)
A18X18B 1/8 X 1/8
A14X18B 1/4 X 1/8
A14X14B 1/4 X 1/4
A38X18B 3/8 X 1/8
A38X14B 3/8 X 1/4
A38X38B 3/8 X 3/8
A12X14B 1/2 X 1/4
A12X38B 1/2 X 3/8
A12X12B 1/2 X 1/2
A34X38B 3/4 X 3/8
A34X12B 3/4 X 1/2
A34X34B 3/4 X 3/4

Union

  • NPT Thread Sizes: From 1/8" to 1-1/2"



BRASS GALVANIZED
PART NO. NPT
THREAD
SIZE		 PART NO. NPT
THREAD
SIZE
U18B^ 1/8 U18G 1/8
U14B^ 1/4 U14G 1/4
U38B^ 3/8 U38G 3/8
U12B^ 1/2 U12G 1/2
U34B^ 3/4 U34G 3/4
U112B^ 1-1/2 U112G 1-1/2

^Bronze


Male Branch

  • NPT Thread Sizes: From 1/8" to 3/4"



BRASS
PART
NO.		 NPT
THREAD
SIZE
MB18B 1/8
MB14B 1/4
MB38B 3/8
MB12B 1/2
MB34B 3/4

Female Pipe Tee

  • NPT Thread Sizes: From 1/8" to 1"



BRASS GALVANIZED
PART NO. NPT
THREAD
SIZE		 PART NO. NPT
THREAD
SIZE
FPT18B 1/8 FPT18G 1/8
FPT14B^ 1/4 FPT14G 1/4
FPT38B^ 3/8 FPT38G 3/8
FPT12B^ 1/2 FPT12G 1/2
FPT34B^ 3/4 FPT34G 3/4
FPT1B^ 1 FPT1G 1

^Bronze


Coupling - Female

  • NPT Thread Sizes: From 1/8" to 1"



BRASS GALVANIZED
PART NO. NPT
THREAD
SIZE		 PART NO. NPT
THREAD
SIZE
C18B 1/8 C18G 1/8
C14B 1/4 C14G 1/4
C38B 3/8 C38G 3/8
C12B^ 1/2 C12G 1/2
C34B^ 3/4 C34G 3/4
C1B^ 1 C1G 1

^Bronze


Reducing Coupling - Female

  • NPT Thread Sizes: From 1/4" Male x 1/8" Female to 2" Male x 1-1/2" Female



BRASS GALVANIZED
PART
NO.		 NPT
THREAD
SIZE		 PART
NO.		 NPT
THREAD
SIZE
RC1418B^ 1/4 X 1/8 RC1418G 1/4 X 1/8
RC3818B^ 3/8 X 1/8 RC3818G 3/8 X 1/8
RC3814B^ 3/8 X 1/4 RC3814G 3/8 X 1/4
RC1218B^ 1/2 X 1/8 RC1218G 1/2 X 1/8
RC1214B^ 1/2 X 1/4 RC1214G 1/2 X 1/4
RC1238B^ 1/2 X 3/8 RC1238G 1/2 X 3/8
RC3414B^ 3/4 X 1/4 RC3414G 3/4 X 1/4
RC3438B^ 3/4 X 3/8 RC3438G 3/4 X 3/8
RC3412B^ 3/4 X 1/2 RC3412G 3/4 X 1/2
RC112B^ 1 X 1/2 RC112G 1 X 1/2
RC134B^ 1 X 3/4 RC134G 1 X 3/4
RC1121B^ 1-1/2 X 1 RC1121G 1-1/2 X 1
RC2112B^ 2 X 1-1/2 RC2112G 2 X 1-1/2

^Bronze


Piston Tube

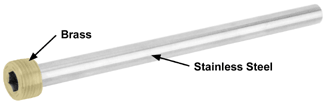

  • Stainless Steel Tubes
  • Precision brazed assembly provides high strength and reliable performance

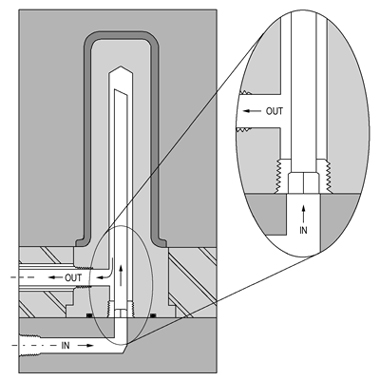

  • Coolant flows through hex socket and high flow stainless tube
  • High-flow stainless tube provides maximum cooling rates

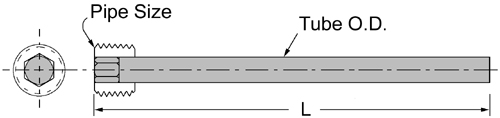

  • Pipe Sizes (NPT): From 1/16" to 3/4"
  • Tube O.D.: From .125" to .437"
  • Tube I.D.: From .109" to .407"
  • Overall Lengths: 12", 24", 36", 48"





PART
NO.		 PIPE
SIZE
(NPT)		 TUBE
O.D.		 TUBE
I.D.		 OVERALL
LENGTH
"L"
PT16-12B 1/16 .125" .109" 12"
PT16-24B 1/16 .125" .109" 24"
PT16-36B 1/16 .125" .109" 36"
PT16-48B 1/16 .125" .109" 48"
PT18-12B 1/8 .187" .167" 12"
PT18-24B 1/8 .187" .167" 24"
PT18-36B 1/8 .187" .167" 36"
PT18-48B 1/8 .187" .167" 48"
PT14-12B 1/4 .250" .230" 12"
PT14-24B 1/4 .250" .230" 24"
PT14-36B 1/4 .250" .230" 36"
PT14-48B 1/4 .250" .230" 48"
PT38-12B 3/8 .375" .345" 12"
PT38-24B 3/8 .375" .345" 24"
PT38-36B 3/8 .375" .345" 36"
PT38-48B 3/8 .375" .345" 48"
PT12-12B 1/2 .375" .345" 12"
PT12-24B 1/2 .375" .345" 24"
PT12-36B 1/2 .375" .345" 36"
PT12-48B 1/2 .375" .345" 48"
PT34-12B 3/4 .437" .407" 12"
PT34-24B 3/4 .437" .407" 24"
PT34-36B 3/4 .437" .407" 36"
PT34-48B 3/4 .437" .407" 48"



Brass Hose Barbs, Standard and Push-Lock


Cover Plug


  • Stops coolant flow on hoses with flow-thru couplers
  • Prevents accidents by plugging unused hoses and manifold ports
  • Keeps couplers and seals clean when not in use

BRASS
PART
NO.		 FITS SOCKET
SERIES NO.
CP-200 200 (1/4" Hole)
CP-300 300 (3/8" Hole)
CP-500 500 (1/2" Hole)


Pipe Cap

  • NPT Thread Sizes: 1/8" to 2"



BRASS GALVANIZED
PART NO. NPT
THREAD
SIZE		 PART NO. NPT
THREAD
SIZE
PC18B^ 1/8 PC18G 1/8
PC14B^ 1/4 PC14G 1/4
PC38B^ 3/8 PC38G 3/8
PC12B^ 1/2 PC12G 1/2
PC34B^ 3/4 PC34G 3/4
PC1B^ 1 PC1G 1
PC114B^ 1-1/4 PC114G 1-1/4
PC112B^ 1-1/2 PC112G 1-1/2
PC2B^ 2 PC2G 2

^Bronze


Pipe Cross

  • NPT Thread Sizes: 1/4" to 2"



BRASS GALVANIZED
PART
NO.		 NPT
THREAD
SIZE		 PART
NO.		 NPT
THREAD
SIZE
CR14B^ 1/4 CR14G 1/4
CR38B^ 3/8 CR38G 3/8
CR12B^ 1/2 CR12G 1/2
CR34B^ 3/4 CR34G 3/4
CR1B^ 1 CR1G 1
CR114B^ 1-1/4 CR114G 1-1/4
CR112B^ 1-1/2 CR112G 1-1/2
CR2B^ 2 CR2G 2

^Bronze


Counter Sunk Hex Head Plug

  • NPT Thread Sizes: 1/16" to 1"



BRASS GALVANIZED
PART NO. NPT
THREAD
SIZE		 PART NO. NPT
THREAD
SIZE
P116B 1/16 N/A 1/16
P18B 1/8 P18G 1/8
P14B 1/4 P14G 1/4
P38B 3/8 P38G 3/8
P12B 1/2 P12G 1/2
P34B^ 1 3/4 P34G2 3/4
P1B^ 1 1 P1G2 1

^Bronze    1Square head    2Hex head


Mold Pressure Plug


  • NPT Thread Sizes: 1/16" to 2"
  • Standard Plugs are Flush Type (7/8 taper)
  • Oversize Plugs (3/4 taper) are also available

BRASS
PART
NO.		 NPT
THREAD
SIZE
MPP116B 1/16
MPP18B 1/8
MPP14B 1/4
MPP38B 3/8
MPP12B 1/2
MPP34B 3/4
MPP1B 1
MPP114B 1-1/4
MPP112B 1-1/2
MPP2B 2

GALVANIZED
PART
NO.		 NPT
THREAD
SIZE
MPP116G 1/16
MPP18G 1/8
MPP14G 1/4
MPP38G 3/8
MPP12G 1/2
MPP34G 3/4
MPP1G 1
MPP114G 1-1/4
MPP112G 1-1/2
MPP2G 2

STAINLESS STEEL 304
PART
NO.		 NPT
THREAD
SIZE
MPP116SS 1/16
MPP18SS 1/8
MPP14SS 1/4
MPP38SS 3/8
MPP12SS 1/2
MPP34SS 3/4
MPP1SS 1
MPP114SS 1-1/4
MPP112SS 1-1/2
MPP2SS 2


Close Nipple

  • NPT Thread Sizes: 1/16" to 1-1/2"



BRASS GALVANIZED STAINLESS STEEL 304
PART
NO.		 NPT
THREAD
SIZE		 PART
NO.		 NPT
THREAD
SIZE		 PART
NO.		 NPT
THREAD
SIZE
CN116B 1/16

N/A

 1/16 CN116SS 1/16
CN18B 1/8 CN18G 1/8 CN18SS 1/8
CN14B 1/4 CN14G 1/4 CN14SS 1/4
CN38B 3/8 CN38G 3/8 CN38SS 3/8
CN12B 1/2 CN12G 1/2 CN12SS 1/2
CN34B 3/4 CN34G 3/4 CN34SS 3/4
CN1B 1 CN1G 1 CN1SS 1
CN114B 1-1/4 CN114G 1-1/4 CN114SS 1-1/4
CN112B 1-1/2 CN112G 1-1/2 CN112SS 1-1/2

Long Nipple

  • NPT Thread Sizes: 1/16" to 1-1/2"



1/16 NPT
BRASS

1/16 NPT
STAINLESS STEEL 304
PART NO. O.A.L. PART NO. O.A.L.
LN116X112B 1-1/2" N/A 1-1/2"
LN116X2B 2" LN116X2SS 2"
LN116X3B 3" LN116X3SS 3"
LN116X4B 4" LN116X4SS 4"
LN116X5B 5" LN116X5SS 5"
LN116X6B 6" LN116X6SS 6"
LN116X7B 7" LN116X7SS 7"
LN116X8B 8" LN116X8SS 8"
LN116X9B 9" LN116X9SS 9"
LN116X10B 10" LN116X10SS 10"
LN116X11B 11" LN116X11SS 11"
LN116X12B 12" LN116X12SS 12"

1/8 NPT
BRASS		 1/8 NPT
GALVANIZED		 1/8 NPT
STAINLESS STEEL 304
PART NO. O.A.L. PART NO. O.A.L. PART NO. O.A.L.
LN18X112B 1-1/2" LN18X112G 1-1/2" LN18X112SS 1-1/2"
LN18X2B 2" LN18X2G 2" LN18X2SS 2"
LN18X3B 3" LN18X3G 3" LN18X3SS 3"
LN18X4B 4" LN18X4G 4" LN18X4SS 4"
LN18X5B 5" LN18X5G 5" LN18X5SS 5"
LN18X6B 6" LN18X6G 6" LN18X6SS 6"
LN18X7B 7" LN18X7G 7" N/A 7"
LN18X8B 8" LN18X8G 8" N/A 8"
LN18X9B 9" LN18X9G 9"

N/A

 9"
LN18X10B 10" LN18X10G 10" LN18X10SS 10"
LN18X11B 11" LN18X11G 11" N/A 11"
LN18X12B 12" LN18X12G 12" N/A 12"

1/4 NPT
BRASS		 1/4 NPT
GALVANIZED		 1/4 NPT
STAINLESS STEEL 304
PART NO. O.A.L. PART NO. O.A.L. PART NO. O.A.L.
LN14X112B 1-1/2" LN14X112G 1-1/2" LN14X112SS 1-1/2"
LN14X2B 2" LN14X2G 2" LN14X2SS 2"
LN14X3B 3" LN14X3G 3" LN14X3SS 3"
LN14X4B 4" LN14X4G 4" LN14X4SS 4"
LN14X5B 5" LN14X5G 5" LN14X5SS 5"
LN14X6B 6" LN14X6G 6" LN14X6SS 6"
LN14X7B 7" LN14X7G 7"

N/A

 7"
LN14X8B 8" LN14X8G 8" LN14X8SS 8"
LN14X9B 9" LN14X9G 9"

N/A

 9"
LN14X10B 10" LN14X10G 10" LN14X10SS 10"
LN14X11B 11" LN14X11G 11"

N/A

 11"
LN14X12B 12" LN14X12G 12" LN14X12SS 12"

3/8 NPT
BRASS		 3/8 NPT
GALVANIZED		 3/8 NPT
STAINLESS STEEL 304
PART NO. O.A.L. PART NO. O.A.L. PART NO. O.A.L.
LN38X112B 1-1/2" LN38X112G 1-1/2" LN38X112SS 1-1/2"
LN38X2B 2" LN38X2G 2" LN38X2SS 2"
LN38X3B 3" LN38X3G 3" LN38X3SS 3"
LN38X4B 4" LN38X4G 4" LN38X4SS 4"
LN38X5B 5" LN38X5G 5" LN38X5SS 5"
LN38X6B 6" LN38X6G 6" LN38X6SS 6"
LN38X7B 7" LN38X7G 7"

N/A

 7"
LN38X8B 8" LN38X8G 8" LN38X8SS 8"
LN38X9B 9" LN38X9G 9"

N/A

 9"
LN38X10B 10" LN38X10G 10" LN38X10SS 10"
LN38X11B 11" LN38X11G 11" N/A 11"
LN38X12B 12" LN38X12G 12" N/A 12"

1/2 NPT
BRASS		 1/2 NPT
GALVANIZED		 1/2 NPT
STAINLESS STEEL 304
PART NO. O.A.L. PART NO. O.A.L. PART NO. O.A.L.
LN12X112B 1-1/2" LN12X112G 1-1/2" LN12X112SS 1-1/2"
LN12X2B 2" LN12X2G 2" LN12X2SS 2"
LN12X3B 3" LN12X3G 3" LN12X3SS 3"
LN12X4B 4" LN12X4G 4" LN12X4SS 4"
LN12X5B 5" LN12X5G 5" LN12X5SS 5"
LN12X6B 6" LN12X6G 6" LN12X6SS 6"
LN12X7B 7" LN12X7G 7" LN12X7SS 7"
LN12X8B 8" LN12X8G 8" LN12X8SS 8"
LN12X9B 9" LN12X9G 9" LN12X9SS 9"
LN12X10B 10" LN12X10G 10" LN12X10SS 10"
LN12X11B 11" LN12X11G 11" LN12X11SS 11"
LN12X12B 12" LN12X12G 12" LN12X12SS 12"

3/4 NPT
BRASS		 3/4 NPT
GALVANIZED		 3/4 NPT
STAINLESS STEEL 304
PART NO. O.A.L. PART NO. O.A.L. PART NO. O.A.L.
LN34X112B 1-1/2" LN34X112G 1-1/2" LN34X112SS 1-1/2"
LN34X2B 2" LN34X2G 2" LN34X2SS 2"
LN34X3B 3" LN34X3G 3" LN34X3SS 3"
LN34X4B 4" LN34X4G 4" LN34X4SS 4"
LN34X5B 5" LN34X5G 5" LN34X5SS 5"
LN34X6B 6" LN34X6G 6" LN34X6SS 6"
LN34X7B 7" LN34X7G 7" LN34X7SS 7"
LN34X8B 8" LN34X8G 8" LN34X8SS 8"
LN34X9B 9" LN34X9G 9" LN34X9SS 9"
LN34X10B 10" LN34X10G 10" LN34X10SS 10"
LN34X11B 11" LN34X11G 11" LN34X11SS 11"
LN34X12B 12" LN34X12G 12" LN34X12SS 12"

1 NPT
BRASS		 1 NPT
GALVANIZED		 1 NPT
STAINLESS STEEL 304
PART NO. O.A.L. PART NO. O.A.L. PART NO. O.A.L.
LN1X2B 2" LN1X2G 2" LN1X2SS 2"
LN1X3B 3" LN1X3G 3" LN1X3SS 3"
LN1X4B 4" LN1X4G 4" LN1X4SS 4"
LN1X5B 5" LN1X5G 5" LN1X5SS 5"
LN1X6B 6" LN1X6G 6" LN1X6SS 6"
LN1X7B 7" LN1X7G 7" LN1X7SS 7"
LN1X8B 8" LN1X8G 8" LN1X8SS 8"
LN1X9B 9" LN1X9G 9"

N/A

 9"
LN1X10B 10" LN1X10G 10" LN1X10SS 10"
LN1X11B 11" LN1X11G 11" N/A 11"
LN1X12B 12" LN1X12G 12" N/A 12"

1-1/4 NPT
BRASS		 1-1/4 NPT
GALVANIZED		 1-1/4 NPT
STAINLESS STEEL 304
PART NO. O.A.L. PART NO. O.A.L. PART NO. O.A.L.
LN114X2B 2" LN114X2G 2" LN114X2SS 2"
LN114X3B 3" LN114X3G 3" LN114X3SS 3"
LN114X4B 4" LN114X4G 4" LN114X4SS 4"
LN114X5B 5" LN114X5G 5" LN114X5SS 5"
LN114X6B 6" LN114X6G 6" LN114X6SS 6"
LN114X7B 7" LN114X7G 7"

N/A

 7"
LN114X8B 8" LN114X8G 8" LN114X8SS 8"
LN114X9B 9" LN114X9G 9" N/A 9"
LN114X10B 10" LN114X10G 10" N/A 10"
LN114X11B 11" LN114X11G 11" N/A 11"
LN114X12B 12" LN114X12G 12" LN114X12SS 12"

1-1/2 NPT
BRASS		 1-1/2 NPT
GALVANIZED		 1-1/2 NPT
STAINLESS STEEL 304
PART
NO.		 O.A.L. PART NO. O.A.L. PART NO. O.A.L.
LN112X2B 2" LN112X2G 2" LN112X2SS 2"
LN112X3B 3" LN112X3G 3" LN112X3SS 3"
LN112X4B 4" LN112X4G 4" LN112X4SS 4"
LN112X5B 5" LN112X5G 5" LN112X5SS 5"
LN112X6B 6" LN112X6G 6" LN112X6SS 6"
LN112X7B 7" LN112X7G 7"

N/A

 7"
LN112X8B 8" LN112X8G 8" LN112X8SS 8"
LN112X9B 9" LN112X9G 9" LN112X9SS 9"
LN112X10B 10" LN112X10G 10" N/A 10"
LN112X11B 11" LN112X11G 11" N/A 11"
LN112X12B 12" LN112X12G 12" N/A 12"

Back to Fittings


art element

Manufacturers of High-Quality Products for the Plastics Molding Industry

Home | Request a Quote | Place an Order | Product Index | Online Catalog | Barrels & Screws | Electrical Products | Hoses & Fittings | Molding Accessories | SDS Sheets | Credit Application | Terms & Conditions | About Us | Contact Us


SERVICES FOR PLASTICS, INC.
800-627-1033

7925 N. Clinton St., Fort Wayne, IN 46825-3113, USA
E-mail: Sales@ServicesForPlastics.com
Contact Webmaster regarding content or link problems
Copyright 1997-2024 | Services For Plastics, Inc. | All rights reserved. | Privacy Policy
