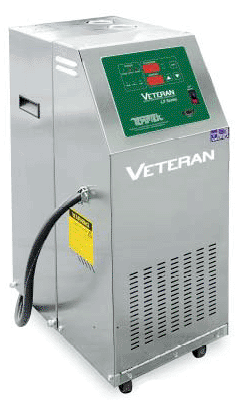

The VT Series Temperature Controller is built for long-term, dependable, full-time operations. Designed by veteran engineers that know the industry, the VT Series is the new "old soldier" for temperature control. The updated VT Series with LX Microprocessor Instrumentation is designed for even better temperature control and reliability
Features:
The new LX microprocessor offers an enhanced control instrument and modulating cooling valve for more precise process temperature control. With a stainless steel cabinet, cast iron, twin tanks and motor casing, the VT Series Temperature Controller is built to last.
The pump assembly has a bronze pump impeller and pump seal flush, as well as a stainless steel pump motor shaft.
A stainless steel cabinet is set on casters for portability and can be removed for easy access to electrical and mechanical parts.
The new modulating cooling valve precisely meters the right amount of cooling water to keep the process temperature within 0.5° of the set point.
Safety features include; a water supply pressure switch, motor overloads, pressure relief valve, high temperature limit, and fused control circuit.
A 10-foot power cord, fused transformer and process pump motor starter are all standard on the VT Series Temperature Controller.
| VT SERIES w/ 6KW HEATER | |||||||
|
150 |
175 |
1100 |
1150 | 1200 | 1300 | ||
| PROCESS PUMP |
HP | .50 | .750 | 1.0 | 1.50 | 2.0 | 3.0 |
| GPM | 20 | 35 | 45 | 62 | 75 | 80 | |
| PSI | 30 | 30 | 30 | 30 | 30 | 30 | |
| FULL LOAD AMPERAGE 1 |
230/3/60 | 17.0 | 17.8 | 18.6 | 20.2 | 21.8 | 24.6 |
| 460/3/60 | 8.5 | 8.9 | 9.3 | 10.1 | 10.9 | 12.3 | |
| DIMENSIONS | HEIGHT | 27" | 27" | 27" | 27" | 27" | 27" |
| WIDTH | 11" | 11" | 11 | 11" | 11" | 11" | |
| DEPTH | 16" | 16" | 16" | 16" | 16" | 16" | |
| CONNECTIONS | TO/FROM PROCESS |
1-1/4" | 1-1/4" | 1-1/4" | 1-1/4" | 1-1/4" | 1-1/4" |
| WATER SUPPLY DRAIN |
1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | |
| WEIGHT (Shipping) | 195 lbs | 200 lbs | 205 lbs | 205 lbs | 210 lbs | 220 lbs | |
| VT SERIES w/ 10KW HEATER | |||||||
|
250 |
275 |
2100 |
2150 | 2200 | 2300 | ||
| PROCESS PUMP |
HP | .50 | .750 | 1.0 | 1.50 | 2.0 | 3.0 |
| GPM | 20 | 35 | 45 | 62 | 75 | 80 | |
| PSI | 30 | 30 | 30 | 30 | 30 | 30 | |
| FULL LOAD AMPERAGE 1 |
230/3/60 | 27.0 | 27.8 | 28.6 | 30.2 | 31.8 | 34.6 |
| 460/3/60 | 13.5 | 13.9 | 14.3 | 15.1 | 15.9 | 17.3 | |
| DIMENSIONS | HEIGHT | 27" | 27" | 27" | 27" | 27" | 27" |
| WIDTH | 11" | 11" | 11 | 11" | 11" | 11" | |
| DEPTH | 16" | 16" | 16" | 16" | 16" | 16" | |
| CONNECTIONS | TO/FROM PROCESS |
1-1/4" | 1-1/4" | 1-1/4" | 1-1/4" | 1-1/4" | 1-1/4" |
| WATER SUPPLY DRAIN |
1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | |
| WEIGHT (Shipping) | 198 lbs | 200 lbs | 208 lbs | 208 lbs | 213 lbs | 223 lbs | |
| VT SERIES w/ 16KW HEATER | |||||||
|
350 |
375 |
3100 |
3150 | 3200 | 3300 | ||
| PROCESS PUMP |
HP | .50 | .750 | 1.0 | 1.50 | 2.0 | 3.0 |
| GPM | 20 | 35 | 45 | 62 | 75 | 80 | |
| PSI | 30 | 30 | 30 | 30 | 30 | 30 | |
| FULL LOAD AMPERAGE 1 |
230/3/60 | 42.0 | 42.8 | 43.6 | 45.2 | 46.8 | 49.6 |
| 460/3/60 | 21.0 | 21.4 | 21.8 | 22.6 | 23.4 | 24.8 | |
| DIMENSIONS | HEIGHT | 27" | 27" | 27" | 27" | 27" | 27" |
| WIDTH | 11" | 11" | 11 | 11" | 11" | 11" | |
| DEPTH | 16" | 16" | 16" | 16" | 16" | 16" | |
| CONNECTIONS | TO/FROM PROCESS |
1-1/4" | 1-1/4" | 1-1/4" | 1-1/4" | 1-1/4" | 1-1/4" |
| WATER SUPPLY DRAIN |
1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | |
| WEIGHT (Shipping) | 200 lbs | 205 lbs | 210 lbs | 210 lbs | 220 lbs | 225 lbs | |
1 Full Load Amps shown. No allowance for in-rush. Full Amps are higher than Run Load Amps and must be used for sizing disconnects and supply wiring
