Screw O.D. Measuring Micrometers

Do It Yourself - Measurement of Feedscrews


Screw O.D. Measuring Micrometers allows precision measuring. Bar is precision-welded in place at 0.000"/ 0.00mm point for accurate measuring. Deluxe heat insulated forged steel frame and carbide tipped construction are designed for solid performance and long life. Micrometers have a ratchet stop and lock nut to ensure exact repetitive readings. All micrometers come with appropriate standard and wrench.

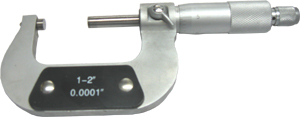

Standard Imperial and Metric Thimble & Sleeve Readout Micrometer

Micrometer with thimble and sleeve readout is the industry standard. The precision-welded bar is placed at 0.00 point for completely accurate measuring. Allows precision measuring with 0.0001"/0.002mm graduation. Ratchet stop and lock nut ensure exact repetitive readings, while precision welded bar allows for accurate measurement.


Standard Imperial Micrometer

PART
NO.

SCREW
O.D.

*SMMT-01

 0" - 1"
SMMT-12 1" - 2"
SMMT-23 2" - 3"
SMMT-34 3" - 4"
SMMT-45 4" - 5"
SMMT-56 5" - 6"
SMMT-67 6" - 7"
SMMT-78 7" - 8"
SMMT-89 8" - 9"
*Standard not included for SMMT-01

Standard Metric Micrometer

PART
NO.

SCREW
O.D.

*SMMT-0025

 0mm - 25mm
SMMT-2550 25mm - 50mm
SMMT-5075 50mm - 75mm
SMMT-75100 75mm - 100mm
SMMT-100125 100mm - 125mm
SMMT-125150 125mm - 150mm
SMMT-150175 150mm - 175mm
SMMT-175200 175mm - 200mm
*Standard not included for SMMT-0025
NOTE: 200-225mm & 225-250mm Not Available for Purchase

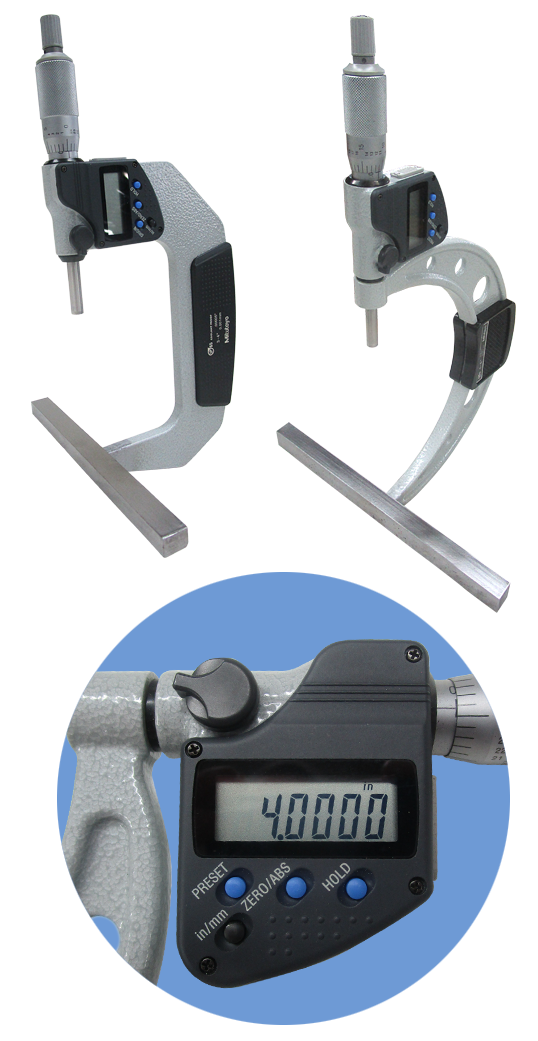

Premium Mitutoyo Digimatic LCD Readout Micrometer

Coolant Proof Digimatic Micrometer with dust/water protection conforming to IP65 level. The precision-welded bar is placed at 0.00 point for completely accurate measuring. LCD Digimatic Readout display. Allows precision measuring with 0.00005"/0.001mm graduation. Functions: Origin-set, Zero-setting, Automatic power on/off, Data hold, Data output, and inch/mm conversion. Optional accessories available upon request.



Premium Mitutoyo Micrometer

PART
NO.

 SCREW O.D.
Imperial & Metric

*SMM-0

 0" - 1" 0mm - 25.4mm
SMM-1 1" - 2" 25.4mm - 50.8mm
SMM-2 2" - 3" 50.8mm - 76.2mm
SMM-3 3" - 4" 76.2mm - 101.6mm
SMM-4 4" - 5" 101.6mm - 127mm
SMM-5 5" - 6" 127mm - 152.4mm
SMM-6 6" - 7" 152.4mm - 177.8mm
SMM-7 7" - 8" 177.8mm - 203.2mm
SMM-8 8" - 9" 203.2mm - 228.6mm
SMM-9 9" - 10" 228.6mm - 254mm
SMM-10 10" - 11" 254mm - 279.4mm
SMM-11 11" - 12" 279.4mm - 304.8mm
*Standard not included for SMM-0


Optional Accessories for Premium Mitutoyo Micrometer

ACCESSORY PARTS

Water-Resistant Connection Cable (1-Meter or 2-Meter)
Digimatic Mini-Processor
Keyboard Input Tool
RS232C Input Tool
USB Input Tool
Software Available Upon Request


SFP micrometers are comparable with the following brands: ALFA, Azia, Brown & Sharpe, Dorsey, Empire, Facom, Fowler, General, Kafer, Mahr, Meda, Mitutoyo, Moore & Wright, Newport, PI, Physik Instrumente, Spectra-Physics, Starrett, Tesa, ThorLabs, Ultra, UPM, VIS, Westward, Yorkshire Precision, ZZW.
