Feedscrew Reconditioning

NOTE: If sending in a parts for inspection that has plastic resin on it or in it, then a SDS for the resin MUST accompany the parts.



Standard Rebuilding

In most cases, feedscrews can be rebuilt at a considerable cost savings over replacement. Flights rebuilt with Stellite or Colmonoy Hardfacing normally last longer than a new general purpose feedscrew.

We can rework root diameters, change compression ratios, replace broken drive ends and tip ends, repair I.D. threads, etc. Rebuilt feedscrews can also be hard Chrome plated or Nitrided.

Most standard rebuilding can be estimated over the telephone. Standard rebuilding consists of inspection, grinding down the flight outside diameter, building up with Stellite #12, grinding the root diameter to clean-up, adding the surface treatment, finish grinding, straightening, and polishing. Phone estimates are not firm until inspection has been completed. There is "NO CHARGE" for inspection. You will be contacted with a firm price and no work is ever performed without your approval.

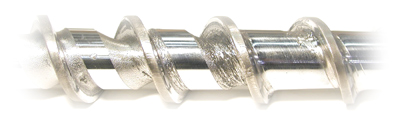

Feedscrew Before Rebuild

Feedscrew photo

Feedscrew Rebuilt

Feedscrew reconditioned



Incoming Freight Policy


  • To help prevent loss during shipping, please attach a copy of your packing slip to the part itself, as well as the outside of the crate.
  • Services for Plastics, Inc. will hold parts sent in for inspection for a maximum period of six (6) months, after which the parts will be scrapped at our warehouse (unless prior arrangements have been made).
  • If sending in parts for inspection that has plastic resin on it or in it, then a SDS for the resin MUST accompany the parts.
  • Parts to be returned to you will be shipped freight collect.
  • All incoming parts for rebuilding, repairs, etc. must be shipped to SFP "Freight Prepaid" in a strong, reusable container (see examples below). The Bill-of-Lading should be marked: MACHINERY PARTS, STEEL, CLASS 85, FREIGHT PREPAID. Smaller items weighing 70 pounds or less should be shipped via UPS Prepaid. In the event that items are received "Freight Collect", our Receiving Department must obtain approval prior to accepting the shipment. If the shipment is accepted, you will be billed for the freight plus a $35.00 Processing Fee. SFP reserves the right to refuse the shipment. Terms for Freight Charges: Net 10 Days. A copy of the original freight bill will be sent with the invoice.
  • If parts are received in a non-reusable container, SFP will build a crate to return the repaired parts, and the customer will be billed for the cost of the crate.

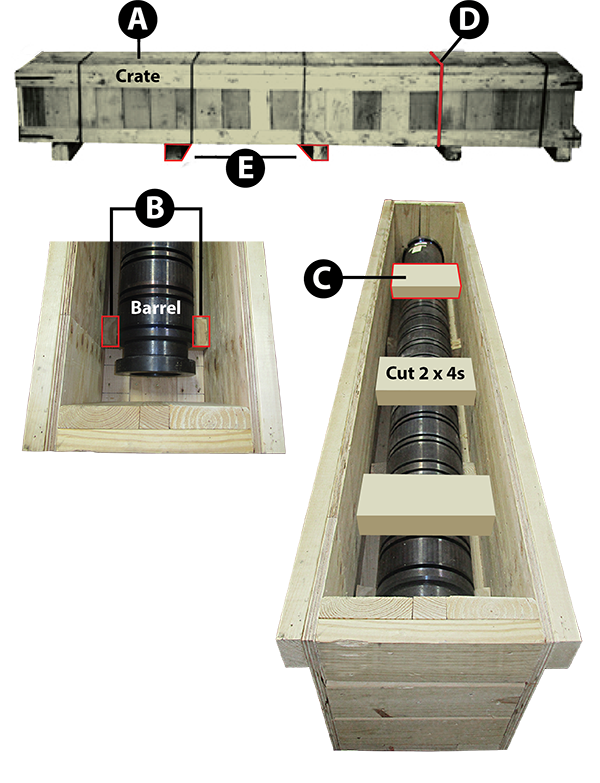

Preferred Packaging Method:


A. Use a strong, reusable wooden crate to transport barrel or feedscrew. Build one if not available.

B. Put the part in the crate and secure wooden blocks to prevent it from rolling.

C. Secure it further with several wooden 2 x 4s, cut to the crate's width. Position 2 x 4s directly above part and secure with nails.

D. Close the crate and secure lid with screws and banding.

E. Crate should be built for moving with a forklift.

Crate design

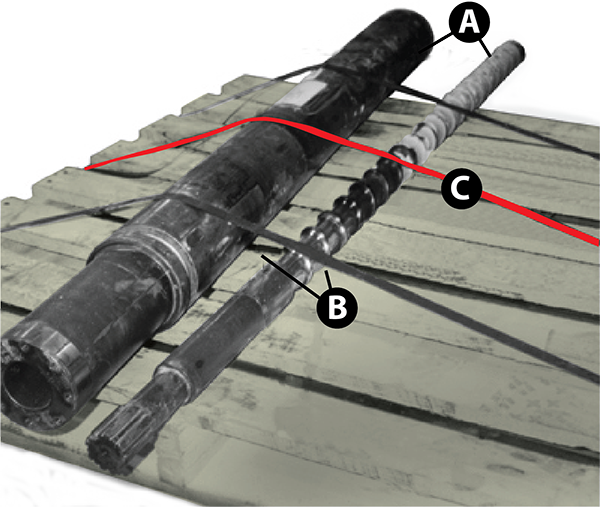

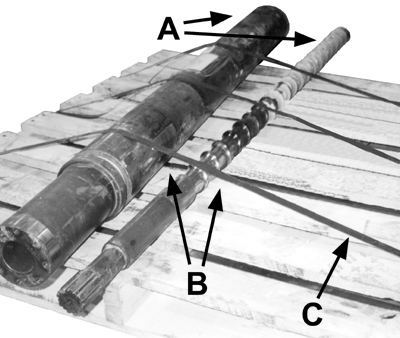

Not Recommended For Transport:


A. Parts hanging unsupported over edge of skid; potential damage.

B. No supports to prevent parts from rolling into each other; potential damage.

C. Banding not strong enough to hold parts immobile; potential loss of parts.

Parts on a skid

Quote Request
