Injection Molding Screw Tip Assemblies

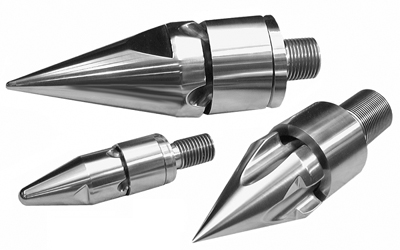

Photo of Screw Tip Assemblies

If you're buying all of your screw tip assemblies from the O.E.M., you're paying too much!
Services for Plastics, Inc. screw tip assemblies are made from significantly higher quality tool steels than available through the O.E.M. Along with better quality, SFP provides customized designing of the screw tip assembly to successfully work with your brand of molding machine and type of application. And SFP offers them at significantly lower prices than the O.E.M. can offer. SFP screw tip assemblies are the BEST VALUE IN THE INDUSTRY!

SFP stock a wide variety of brands, plus we also can manufacture any screw tip assembly.
Using your sample screw tip assembly, your print or a print from our extensive library, we will manufacture a screw tip assembly to match your specific requirements. SFP screw tip assemblies are available in a wide variety of tool steels to match your application.

Need information on installation see Tech Tips.


Contact Us Today

Our skilled sales engineers are ready to recommend solutions for your screw tip assembly.
Email: Sales@ServicesForPlastics.com
Phone: 800-627-1033

SFP can make any screw tip assembly!

We have an extensive CAD library consisting of thousands of prints for screw tips, barrels, screw, nozzles, end caps, etc. If you need a quote and there isn't a print available, simply send us a used sample part and specify what material you want the new one made from. (Hint: Always save your original screw tip assemblies. They are valuable for verification of dimensions when ordering new assemblies.)

No one check valve design is perfect for every application; therefore, we offer three distinct designs to ensure the proper component for your application.


Design Options:

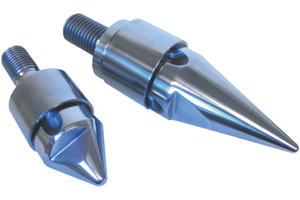

ACCU-FLO Screw Tip Assembly

ACCU-FLO™ Design Screw Tip Assembly

Advantages:

  • Excellent Design for Most Plastics
  • Good for Color Mixing
  • Good Shut-off
  • Faster Screw Recovery - Less Heat Build-Up
  • Possibility of Faster Cycles
  • 3-Piece Design

Improved Designs With Non-Rotating Rings For These Popular Brands:

Cincinnati ACT / Roboshot, Goldstar, JSW, Kawaguchi, Mitsubishi, Nissei, Nissin, Sumitomo, Toshiba, Toyo

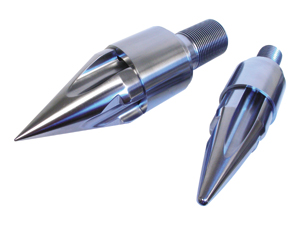

OEM Design STA

OEM Design Screw Tip Assembly

Advantages:

  • Good Design for Most General Purpose Materials
  • Excellent Shut-off
  • Excellent for Small Precise Shots
  • OEM Compatible
  • Rotating Ring Design Where Applicable
  • All the Best Characteristics of OEM plus custom-designed enhancements to improve
    overall performance
  • 3-Piece Design

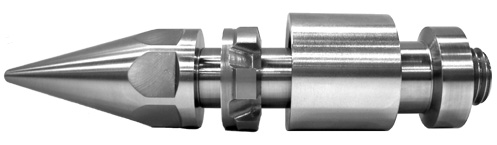

4-piece Screw Tip Assembly

4-Piece Design Screw Tip Assembly

Advantages:

  • Ideal for high abrasion materials
  • Alloy Tool Steel Nitrided
  • Carbide Faced
  • Ceramic Faced
  • 4-Piece Design

Material Options:

H13 Tool Steel

A good high strength pre-hardened tool steel which is machined, thru-hardened, and ground dimensionally, then nitride hardened for 72 hours for better wear resistance. H13 is tough and can handle pressure and torque.

D2 Tool Steel

A high carbon/high chrome tool steel with good wear resistance, but low on torque strength. D2 should only be used with 4-piece designs where the stud is manufactured from 4140, H13 or another high torque steel.

CPM® 9V Tool Steel

A new generation tool steel with a high percentage of Vanadium Carbide developed for high wear (abrasive) applications. It resists wear from abrasive fillers in resin. (Construction: Carbon 1.8%, Manganese 0.50%, Silicon 0.9%, Chromium 5.25%, Molybdenum 1.3%, Vanadium 9.0%.)

CPM® 420V Tool Steel

Crucible's CPM® 420V is a new stainless tool steel best suited for corrosion resistant applications. CPM® 420V is a higher performance upgrade from CPM® 440V. Corrosion resistance is significantly better than CPM® 440V. Wear resistance is about 25-50% better than CPM® 440V, due to the higher Vanadium Carbide content of CPM® 420V (9% Vanadium vs. 5.5-6% in CPM® 440V).

CPM® M4 Tool Steel

Crucible's CPM® M4 is a high Vanadium, special purpose, high speed steel exhibiting better wear resistance and toughness than D2 or CPM® 9V. CPM® M4 has a hardness rating of 64.0. (Construction: Carbon 1.42%, Chromium 4.0%, Vanadium 4.0%, Tungsten 5.5%, Molybdenum 5.25%.)


The following brands of screw tip assemblies are in stock and ready to ship.

Arburg, Autojector, Battenfeld, Beloit, Bipel, Borche, Boston Matthews, Boy, Bucher, Chuan Lih Fa, Cincinnati, Cincinnati ACT / Roboshot, Cincinnati Roboshot, Cincinnati Vista, Cincinnati Vista Sentry, Demag, Desma, Dima, Dong Shin, Egan, Engel, Farrel, Fellows, Ferromatik, Fortune, Fu Chun Shin, Gloenco, Gloucester, Gluco, Goldstar, Haitian, Hettinga, Hishiya, HPM, Hull, Husky, Illinois Precision, Impco, Jaco, Johns, Jomar, JSW, Kawaguchi, Kenplas, Klockner Ferromatik, Klockner Windsor, Krauss-Maffei, Kuasy, Lester, Lien Fa, Lombard, Maplan, Martinand, McNeil, Meiki, Metalmec, Mini-jector, MIR, Mitsubishi, Moslo, Multiplas, Natco, Negri Bossi, Netstal, New Britain, Newbury, Niigata, Nissei, Nissin, Pentaject, Presma, Promax, Pyramid, Reed Prentice, Rutil, Sandretto, Seiko, Shinwa, Seiki, Sodick, Stokes, Stork, Stubbe, Sumitomo, TMC, Toshiba, Toyo, Triulzi, Trubor, Trueblood, UBE, Van Dorn, Van Dorn / Demag, Van Dorn / GT, Wabash MPI, Welltec, Willert, Windsor, YCI - Supermax


If you don't see what you are looking for, please contact us at Sales@ServicesForPlastics.com or phone us at 1-800-627-1033.



Need To Order A Barrel?

SFP has more than 1,000 barrels and screws IN STOCK, let us help you, click here.


Do You Need A New Feedscrew?

Our team of specialists are here to help you buy the perfect feedscrew for your application, learn more click here.


Do You Need A Granulator Screen?

We have granulator screens, in-stock and custom designed. Thousand of different screen sizes and patterns, click here.
